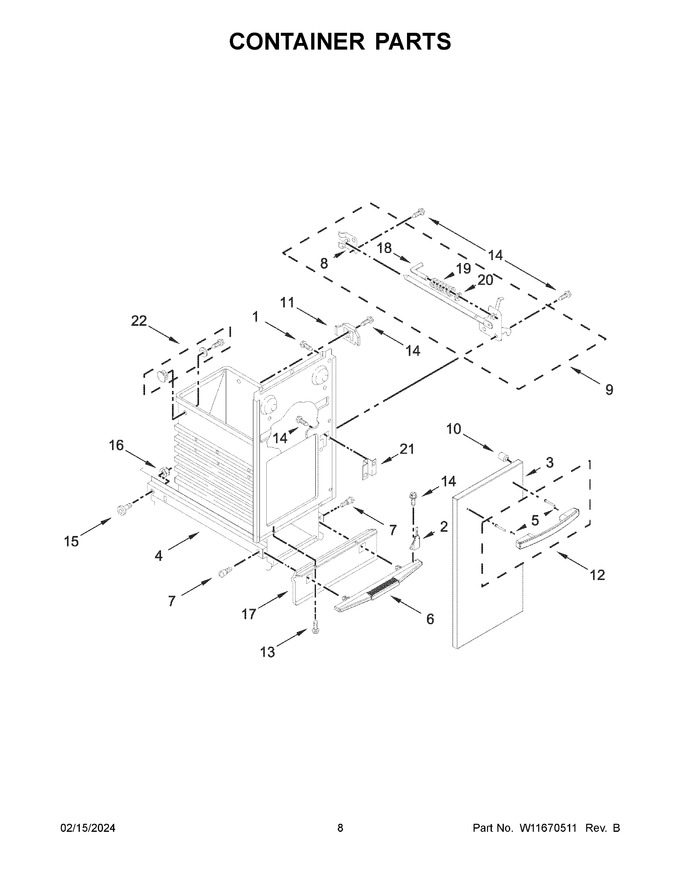

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
2	WPW10451270		Actuator Assembly (actuator Switch)   (Replaces: W10242549)				$ 103.67
3	9872187S		Panel, Container Front (stainless)		Appelez-nous	-
4	WPW10451276		Container Assembly   (Replaces: 9870934)				$ 510.52
5	WP8281196		Screw   (Replaces: W10149353)			Immediately	$ 7.55
5	W11515900		End Cap (stainless)		Appelez-nous	-
6	W11679165		Pedal, Foot (black)   (Replaces: 4149672)				$ 62.46
7	WP780263		Screw   (Replaces: 780263)				$ 8.34
8	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
9	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
10	W10318877		Spacer, Handle		Appelez-nous	-
11	9871125		Actuator, Safety Switch				$ 29.37
12	W11515901		Handle Assembly (stainless)		Appelez-nous	-
13	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.55
14	WP489478		Screw   (Replaces: W10001260)				$ 8.18
15	WP9871602		Bearing, Container Roller   (Replaces: 9871602)				$ 13.87
16	WP776356		Locknut   (Replaces: 776356)				$ 8.53
17	W11696574		Plate, Toe Guard (black)   (Replaces: W10242557)				$ 142.26
18	W11705836		Pin, Latch   (Replaces: 776654)		Appelez-nous	-
19	775736		Spring, Latch				$ 93.80
20	W11679168		Ring, E   (Replaces: 775735)		Appelez-nous	-
21	775665		Plate, Latch				$ 62.39
22	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
23	WP8281196		Screw   (Replaces: W10149353)			Immediately	$ 7.55
