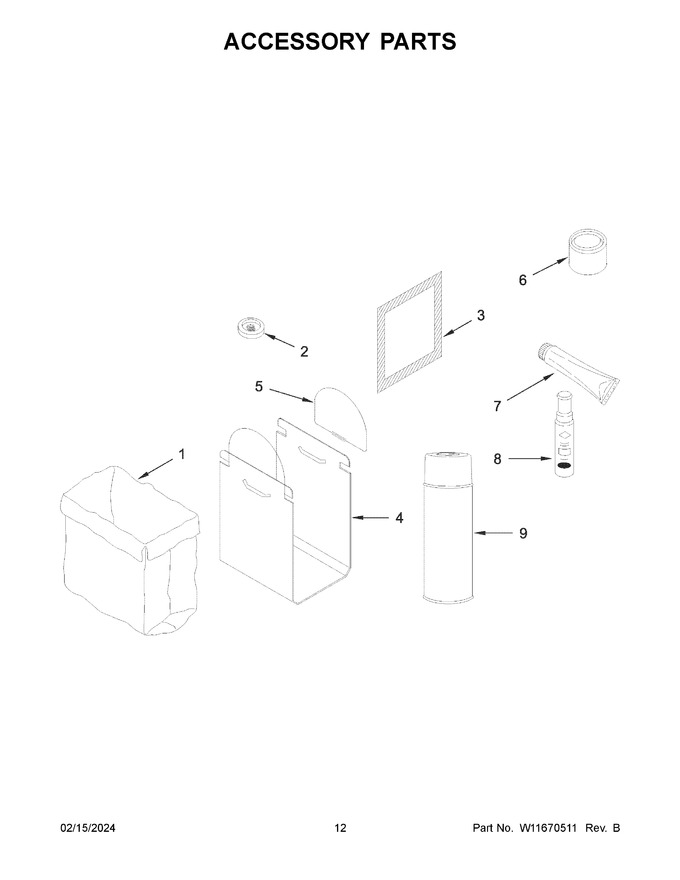

07 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165295RP		Bag, Trash (15 In Plastic) (15 Pack)   (Replaces: 4318921)			Immediately	$ 32.07
2	777635		Deodorizer, Solid Stick Ups (2 Pack)		Appelez-nous	-
3	W10540355		Deodorizer Block (green Apple)   (Replaces: 9872166GA)				$ 15.89
4	13030RP		Carrier, Bag (includes Item 5)			Immediately	$ 58.33
5	WP777108		Handle, Bag Carrier   (Replaces: 777108)				$ 36.99
6	675351		Grease 4 Oz. (use On Power Screw And Ram Pressure Pads)		Appelez-nous	-
7	WP279368		Adhesive (2 Oz. Tube)   (Replaces: 279368)			Immediately	$ 116.46
8	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
9	350930		Paint, Spray 13 Oz. (white)			Immediately	$ 40.12
10	W10083931A		Handle Kit (previous Architect Series) (stainless)   (Replaces: 8564945)				$ 107.25
10	NP		Following Parts Not Illustrated		Appelez-nous	-
1A	4318922		Bag, Trash (15 In Plastic) (60 Pack)		Appelez-nous	-
1B	W10165295		Bag, Trash (15" Plastic) (bu. 12 Boxes Of 15 Pack)		Appelez-nous	-
1B	W10165295BU		12 Boxes Of 15 Pack			Immediately	$ 228.91
1C	675186		Bag, Trash (15 In Paper) (12 Pack)				$ 22.83
1D	882652		Bag, Trash (15 In Paper) (48 Pack)				$ 82.10
3A	9872166LG		Deodorizer Block (lemongrove)		Appelez-nous	-
3B	9872166L		Deodorizer Block (lavender)		Appelez-nous	-
8A	72032		Touch-up Paint (black)			Immediately	$ 18.69
9A	285006		Paint, Pressurized Spray (12 Oz. Black)				$ 59.89
NI	W10083931A		Handle Kit (previous Architect Series) (stainless)   (Replaces: 8564945)				$ 107.25
