01 - Cover Sheet

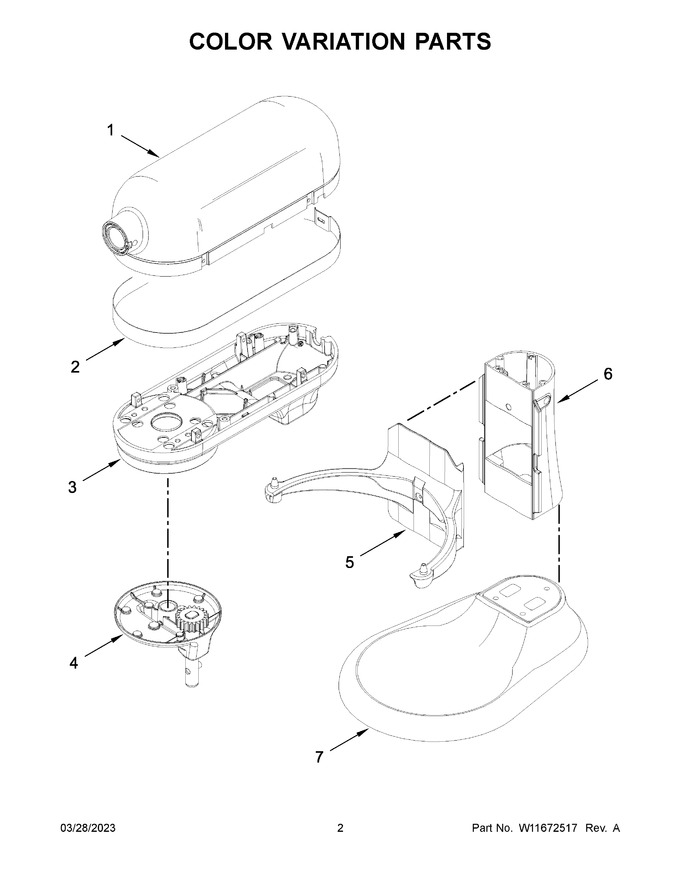

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10726426 | Motor Housing (ice) |
|
- | |||||
| 2 | W11755731 | Trim Band (bright Aluminum) (Replaces: W11420346) |
|
- | |||||
| 3 | W11527622 | Lower Gearcase (ice) |
|
- | |||||
| 4 | W11527656 | Planetary (ice) |
|
- | |||||
| 5 | W11234531 | Bowl Support And Pins (ice) |
|
- | |||||
| 6 | W10726438 | Column And Pins (ice) |
|
- | |||||
| 7 | W10726441 | Base And Foot Assembly (ice) |
|
- |
