01 - Cover Sheet
02 - Color Variation Parts

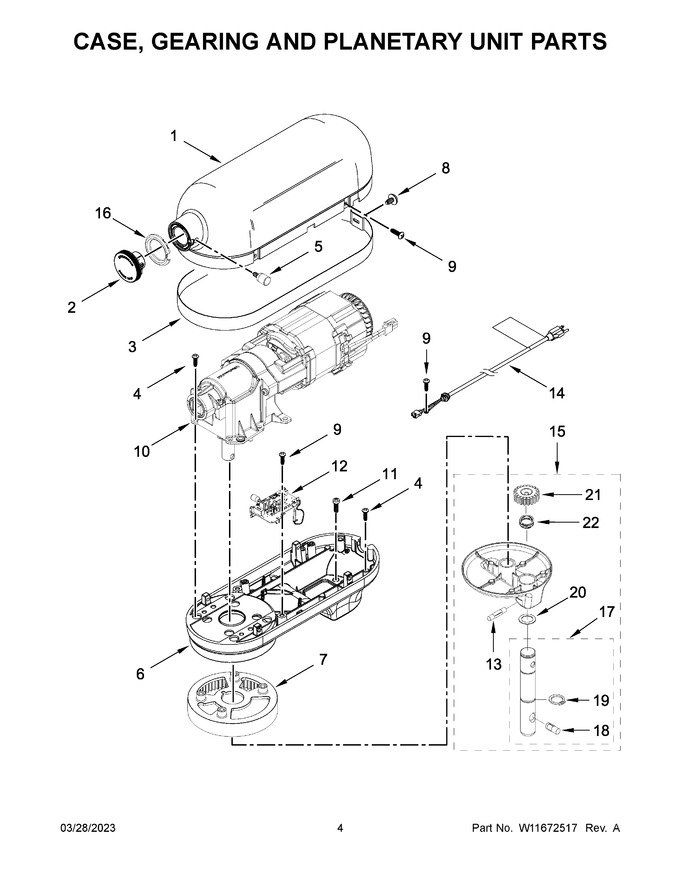

03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W11677160 | Cap, Attachment Hub (Replaces: W11618094) |
|
- | |||||
| 3 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 4 | W10914506 | Screw (Replaces: W10351843) |
|
$ 4.59 | |||||
| 5 | W11677196 | Thumb Screw (black) (Replaces: W11521861) |
|
- | |||||
| 6 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | W11647948 | Gear, Ring And Plate Assembly (Replaces: W11454895) |
|
- | |||||
| 8 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 9 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 10 | W11647949 | Motor,120 Volt Assembly (Replaces: W11523176) |
|
Immediately | $ 220.57 | ||||
| 11 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 12 | W11672012 | Control Assembly, 120 Volt (Replaces: W11503693) |
|
$ 88.75 | |||||
| 13 | WPW10234531 | Pin, Groove (Replaces: W10234531) |
|
Immediately | $ 5.29 | ||||
| 14 | W11677162 | Cord, Power (black) (Replaces: W11459236) |
|
$ 29.38 | |||||
| 15 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 16 | W11123129 | Ring, Attachment Hub (Replaces: 9706141) |
|
$ 19.69 | |||||
| 17 | W11647951 | Shaft, Agitator (Replaces: W11531546) |
|
- | |||||
| 18 | W11664709 | Pin, Groove (Replaces: W11533778) |
|
Immediately | $ 6.75 | ||||
| 19 | WP9703680 | Clip, Retaining (Replaces: 9703680) |
|
Immediately | $ 4.99 | ||||
| 20 | W10854966 | Washer (Replaces: 8533910) |
|
$ 4.94 | |||||
| 21 | W11647950 | Gear, Pinion (Replaces: W11553110) |
|
- | |||||
| 22 | W11649170 | Spring, Wave (Replaces: W11537260) |
|
- |
