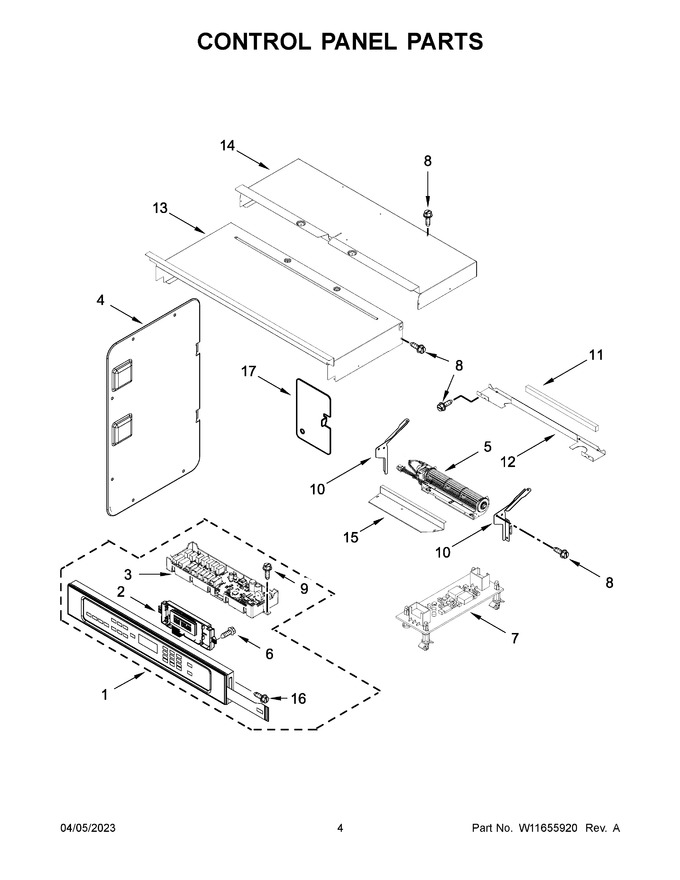

03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11659256		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11467611)		Appelez-nous	-
2	WPW10752316		Interface (maxwell), User Board   (Replaces: W10752316)			Immediately	$ 423.85
3	W11649132		Control, Maxwell   (Replaces: W11556519)				$ 371.31
4	W10655467		Chassis, Combo Side				$ 83.02
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	7101P40360		Screw		Appelez-nous	-
7	WPW10412514		Board, Wide Interface   (Replaces: W10412514)				$ 318.64
8	7101P42660		Screw		Appelez-nous	-
9	7101P42760		Screw		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W11166802		Divider, Chassis Back		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30 In		Appelez-nous	-
14	W10588732		Chassis, Cover Top Back 30 In				$ 225.86
15	W10681157		Cover, Combo Blower		Appelez-nous	-
16	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
17	W11533682		Cover, Wifi		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
