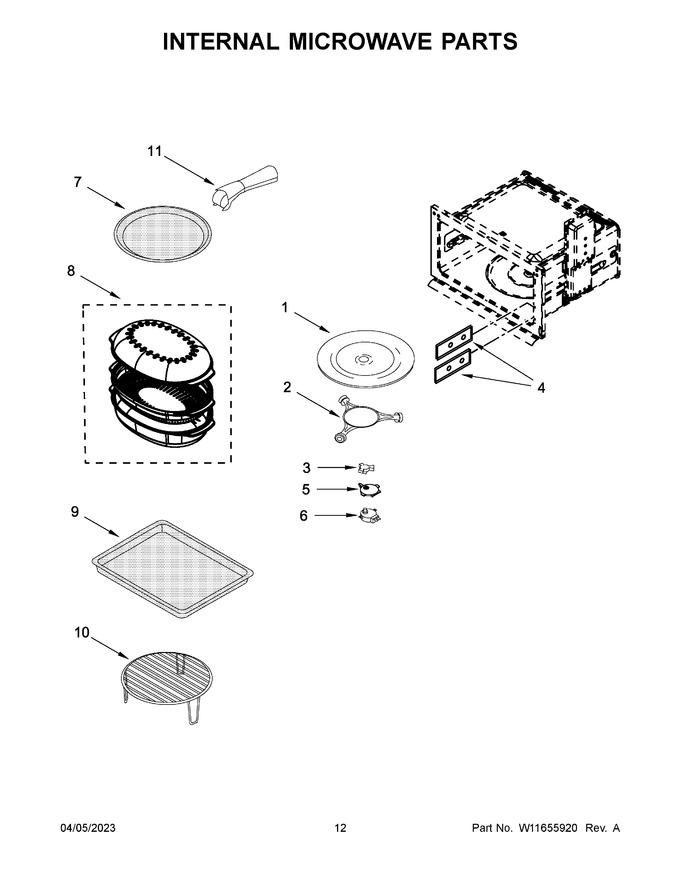

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11460385 | Turntable, Glass (Replaces: W11340342) |
|
Immediately | $ 84.80 | ||||
| 2 | W11110134 | Ring, Turntable (Replaces: W10367316) |
|
Immediately | $ 74.00 | ||||
| 3 | W11179756 | Drive, Turntable (Replaces: W10545578) |
|
Immediately | $ 25.31 | ||||
| 4 | W10915651 | Plate, Cover (Replaces: 461967451001) |
|
Immediately | $ 84.67 | ||||
| 5 | W11676353 | Adapter, Turntable Motor (Replaces: 461967753742) |
|
Immediately | $ 21.77 | ||||
| 6 | W10911403 | Motor, Turntable (Replaces: 461967848971) |
|
Immediately | $ 117.53 | ||||
| 7 | W11512490 | Plate, Crisp (Replaces: W10120480) |
|
Immediately | $ 121.50 | ||||
| 8 | 8205262RB | Steamer, Microwave |
|
$ 57.03 | |||||
| 9 | W11512489 | Plate, Baking (Replaces: W10120486) |
|
$ 92.91 | |||||
| 10 | W11175831 | Rack (Replaces: W10120483) |
|
$ 42.74 | |||||
| 11 | W10851464 | Handle, Pan (Replaces: W10120481) |
|
$ 24.83 | |||||
| NI | NP | Cabinet (not A Serviceable Part) |
|
- |
