01 - Cover Sheet

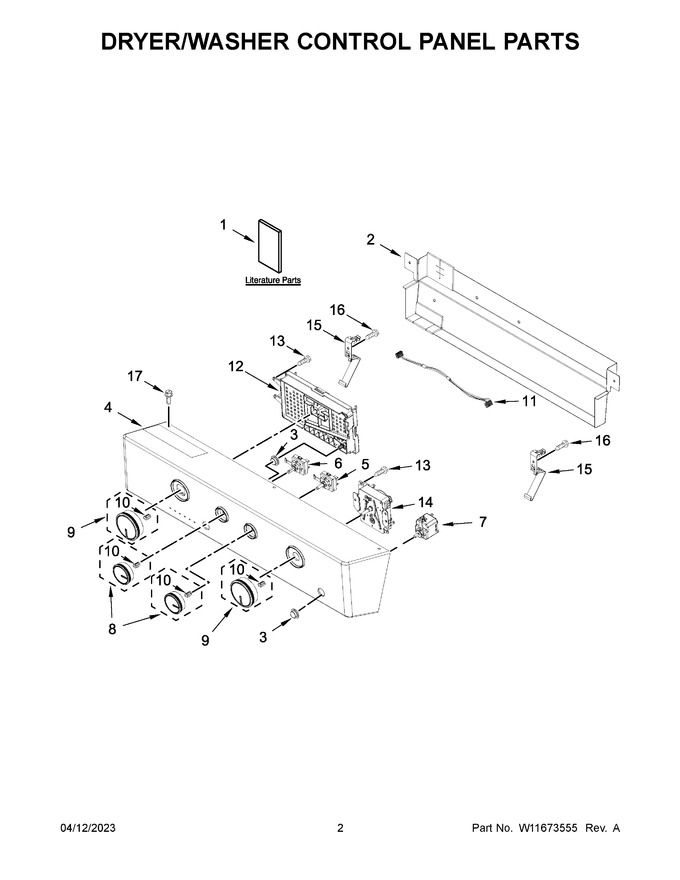

02 - Dryer/washer Control Panel Parts


03 - Dryer Front Panel And Door Parts


04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Burner Assembly Parts


07 - Dryer Support And Washer Harness Parts


08 - Washer Top And Cabinet Parts


09 - Washer Basket And Tub Parts


10 - Washer Gearcase, Motor And Pump Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11563107		Owners Manual		Appelez-nous	-
2	W11040441		Shield, Console		Appelez-nous	-
3	W11049351		Button, Push To Start				$ 70.91
4	W11367045		Console   (Replaces: W11313670)				$ 376.20
5	W10859568		Switch, Rotary Encoder (5 Position)   (Replaces: W10414411)			Immediately	$ 188.32
6	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 219.11
7	WPW10420741		Switch, Push To Start   (Replaces: W10420741)			Immediately	$ 36.45
8	W10576636		Knob, Assembly (white/metallic)		Appelez-nous	-
9	W11501455		Knob, Assembly (white/metallic)   (Replaces: W10576634)				$ 45.78
10	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
11	W10694669		Harness, Jumper				$ 85.10
12	W11629601		Control Unit Assembly, Machine And Motor   (Replaces: W11579776)			Immediately	$ 333.77
13	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
14	W10854240		Timer Assembly   (Replaces: W10642934)			Immediately	$ 348.44
15	3389453		Bracket, Hinge				$ 91.07
16	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
17	W10636208		Screw		Appelez-nous	-
1A	W11082888		Tech Sheet		Appelez-nous	-
1B	W11097400		Wiring Diagram		Appelez-nous	-
1C	W11360572		Energy Guide		Appelez-nous	-
1D	W11559778		Installation Instructions		Appelez-nous	-
