Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11662155 Harness, Washer   (Replaces: W11028053) In-Stock Immediately $ 135.21

2 W11230133 Hose, Pressure Switch   (Replaces: W11136272) Special Order $ 33.74

3 W10585084 Coupling, Pressure Hose Appelez-nous -
4 W10210799 Clip, Harness Appelez-nous -
5 W11026515 Assembly, Channel (right) Appelez-nous -
6 W11026516 Assembly, Channel (left) Appelez-nous -
7 WP681414 Screw   (Replaces: 343641) In-Stock Immediately $ 8.47

8 WP308685 Screw   (Replaces: 3393008) In-Stock Immediately $ 7.87

9 W11108179 Shield, Thermostat Special Order $ 58.38

10 W11108667 Shield, Front Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

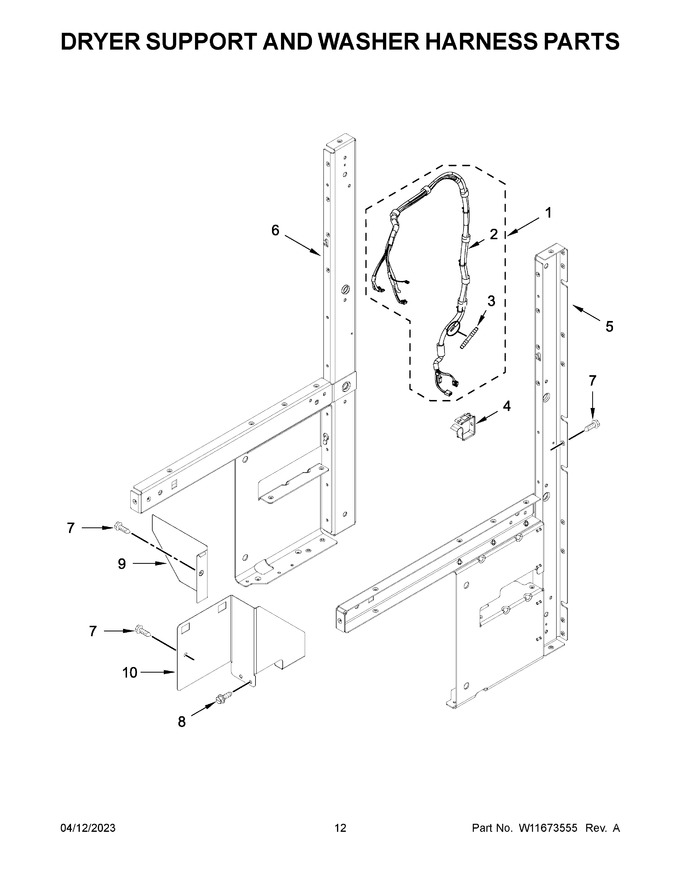

Diagram for WGT4027HW2
