01 - Cover Sheet

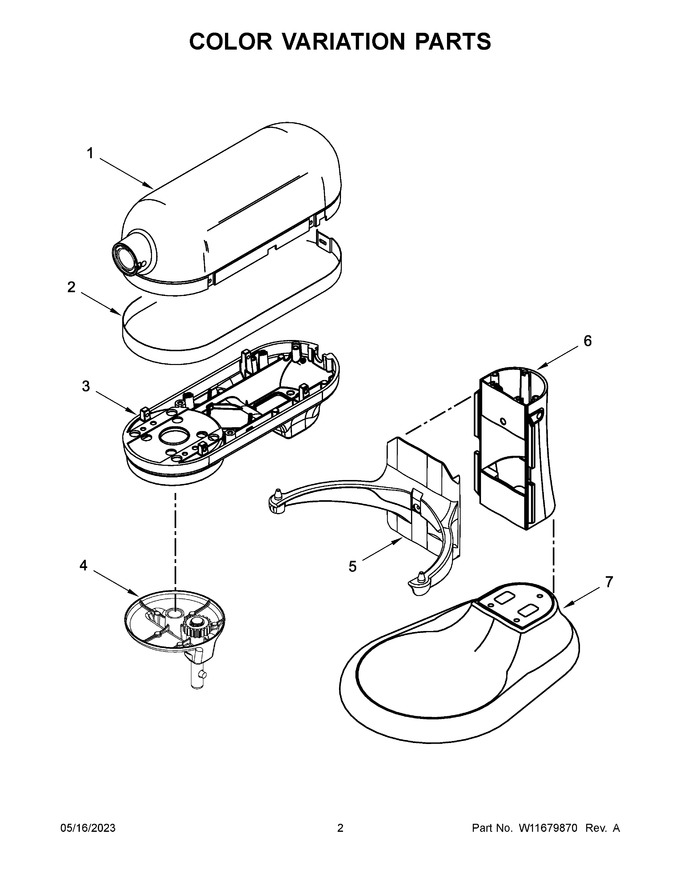

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 2 | W10475035 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W11589983 | Lower Gearcase (white) |
|
- | |||||
| 4 | W11591180 | Planetary (white) |
|
- | |||||
| 5 | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 6 | W10451002 | Column And Pins (white) |
|
- | |||||
| 7 | 9703690 | Base And Foot Assembly (white) |
|
- |
