01 - Cover Sheet
02 - Color Variation Parts

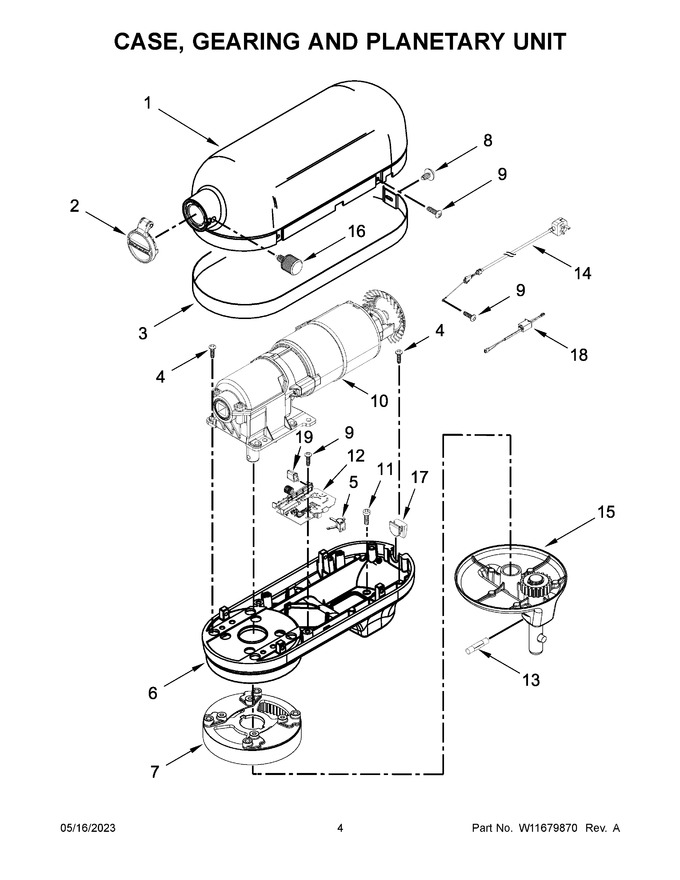

03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W11123129 | Cap, Attachment Hub, Hinged (Replaces: W10394928) |
|
$ 19.69 | |||||
| 3 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 4 | W10914506 | Screw (Replaces: W10351843) |
|
$ 4.59 | |||||
| 5 | WPW10305968 | Holder, Control (Replaces: W10305968) |
|
$ 4.33 | |||||
| 6 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 7 | W11672011 | Assembly, Ring Gear And Plate (Replaces: W11518734) |
|
- | |||||
| 8 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 9 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 10 | W11246392 | Motor, 100 Volt (Replaces: W10517933) |
|
- | |||||
| 11 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 12 | WPW10487697 | Control Assembly, 120 Volt (Replaces: W10487697) |
|
$ 181.60 | |||||
| 13 | WPW10234531 | Pin, Groove (Replaces: W10234531) |
|
Immediately | $ 5.29 | ||||
| 14 | W10526198 | Cord, Power |
|
- | |||||
| 15 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 16 | WPW10360791 | Thumb Screw (black) (Replaces: W10360791) |
|
$ 10.68 | |||||
| 17 | W10417201 | Clip, Plug |
|
- | |||||
| 18 | W11319634 | Filter (Replaces: W10703126) |
|
- | |||||
| 19 | W11736463 | Guard, Switch (Replaces: W10720795) |
|
- |
