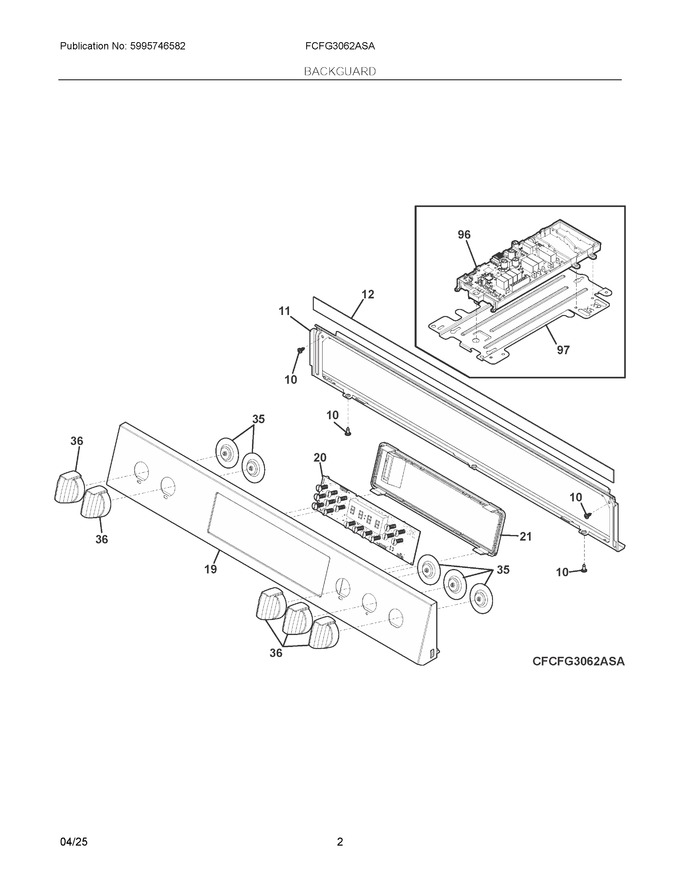

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304528388		Control Panel, Assembly, Stainless				$ 185.92
20	5304538391		Controller, Electronic, Ui405g   (Replaces: 5304534097)				$ 146.70
21	5304534688		Cover, Control				$ 32.53
35	5304508440		Bushing, Insulating			Immediately	$ 12.64
36	5304509064		Knob, Stainless				$ 74.15
96	140202480038		Pc Board, Assembly, Ovc   (Replaces: 5304528427)			Immediately	$ 149.87
97	5304528372		Bracket, Ovc Board				$ 12.98
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	5304534087		Harness, Wiring, Macs Panel, To Ui			Immediately	$ 56.95
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
