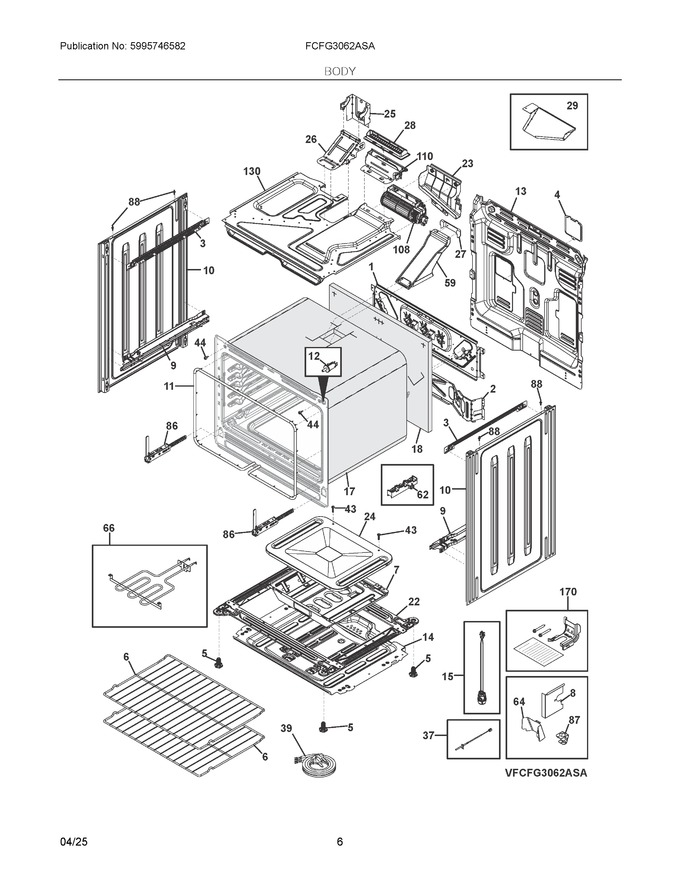

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533416		Bracket, Rear Components, Upper		Appelez-nous	-
2	5304533425		Bracket, Components, Lower				$ 67.91
3	5304526493		Bracket, Side Panel, Cooling				$ 16.80
4	5304528328		Cover, Wiring				$ 9.61
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	5304531722		Rack, Oven, Wire, Flat   (Replaces: 5304526378)			Immediately	$ 56.72
7	140169549064		Box, Burner, Bake   (Replaces: 5304534661)		Appelez-nous	-
8	5304533923		Cover, Terminal Block		Appelez-nous	-
9	5304528546		Receptacle, Hinge Carrier			Immediately	$ 38.31
10	5304526334		Panel, Body Side, Black			Immediately	$ 153.87
11	5304526243		Seal, Door			Immediately	$ 57.63
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
13	5304533417		Shield, Small, Rear Wires		Appelez-nous	-
14	5304533860		Shield, Insulation, Lower		Appelez-nous	-
15	5304533411		Lamp Assembly, Oven, G9 40w, Halogen			Immediately	$ 40.56
17	5304528185		Insulation, Wrapper		Appelez-nous	-
18	5304533848		Insulation, Oven Back		Appelez-nous	-
22	5304533415		Base Rail, Assembly			Immediately	$ 152.96
23	5304533976		Guard, Lower, Plastic, Black		Appelez-nous	-
24	5304535291		Bottom, Oven, Midnight Black   (Replaces: 5304534692)				$ 108.60
25	5304534668		Shield, Heat, Rear		Appelez-nous	-
26	5304534669		Shield, Heat, Front		Appelez-nous	-
27	5304534672		Cover, Duct		Appelez-nous	-
28	5304534674		Diverter, Exhaust		Appelez-nous	-
29	140202790030		Shield, Diverter   (Replaces: 5304534685)		Appelez-nous	-
37	5304533448		Probe, Oven Temp, Sensor			Immediately	$ 54.60
39	5304534691		Cord, Power				$ 77.27
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 11.03
44	316517600		Bumper, Front, Main				$ 13.39
59	5304534664		Flue, Assembly		Appelez-nous	-
62	5303935271		Terminal Block Kit				$ 81.73
64	5304528550		Shield, Terminal Block				$ 10.56
66	5304533847		Element, Broil, 6 Pass				$ 61.17
86	5304526279		Hinge, Oven Door, Orange, 2 Spring			Immediately	$ 70.22
87	5304533922		Bracket, Power Cord				$ 9.04
88	316099501		Pin, Guide		Appelez-nous	-
108	5304537803		Motor, Blower   (Replaces: 5304533431)				$ 135.23
110	5304528419		Duct Assembly, Exhaust, Cooling		Appelez-nous	-
130	5304534670		Duct Assembly, Cooling		Appelez-nous	-
170	316112010		Anti Tip Kit, Assy, 30", W/template			Immediately	$ 25.62
NI	5304534671		Harness, Wiring, Main		Appelez-nous	-
NI	5304534091		Harness, Wiring, Low Voltage		Appelez-nous	-
NI	5304533471		Screw, T20, 4.4 X 13		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	5304533469		Standoff, Harness, Plastic		Appelez-nous	-
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 4.08
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.37
NIA	5304533495		Screw, Sd Hex Washer, 4.2 X 12.7		Appelez-nous	-
NIA	387856311		Screw, 4.2 X 10				$ 3.37
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
