SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

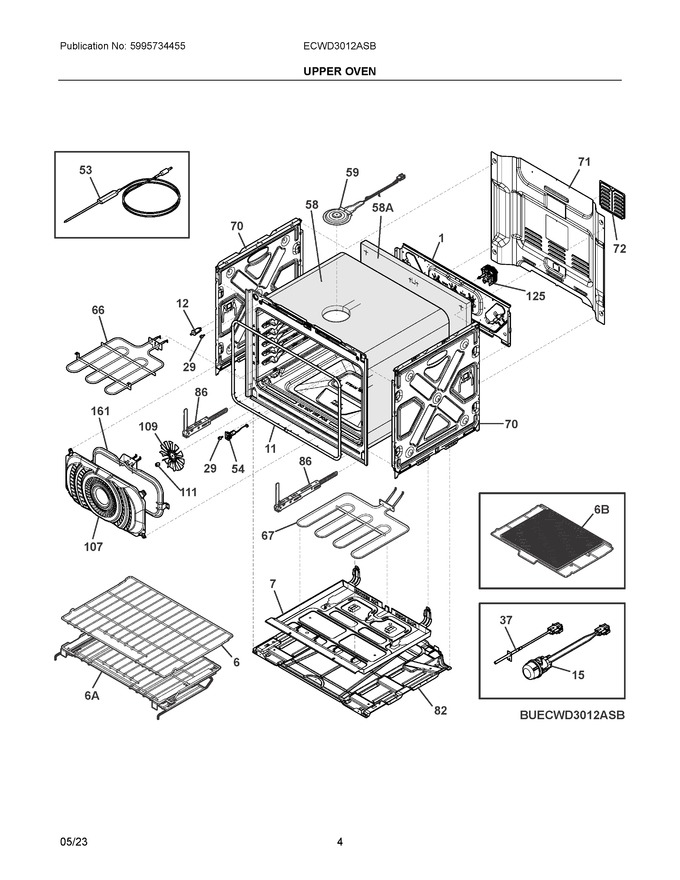

03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526336		Panel, Rear		Appelez-nous	-
6	5304532107		Rack, Handled, Flat				$ 70.88
7	5304528326		Tray, Hidden Bake				$ 58.14
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 160.10
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
15	140072023256		Lamp Assembly, Halogen, G9, 40w, 120v   (Replaces: 5304530343)		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 13.39
37	5304526310		Probe, Oven Sensor			Immediately	$ 47.97
53	807822611		Probe, Food, Red   (Replaces: 807822606)			Immediately	$ 27.85
54	140233289069		Receptacle, Meat Probe   (Replaces: 5304532776)		Appelez-nous	-
58	140293845024		Insulation, Wrapper, Oven   (Replaces: 5304532774)		Appelez-nous	-
59	5304530445		Vent Assembly, Vent Tube, Heated, W/catalyst		Appelez-nous	-
66	5304536847		Element, Broil, 6 Pass, 4000w, 240v   (Replaces: 5304526370)			Immediately	$ 79.36
67	5304535239		Element, Hidden Bake, 8 Pass, 67 #, 2500w			Immediately	$ 63.21
70	5304526314		Panel, Side, Exterior				$ 78.70
71	5304526329		Shield, Rear Wire				$ 87.63
72	5304526588		Cover, Convection Mtr				$ 18.90
82	5304530352		Panel, Exterior, Bottom, Upper Oven		Appelez-nous	-
86	5304530350		Hinge, Door, Brown, Soft Close				$ 137.78
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 16.01
111	561231207		Nut, Fan Blade			Immediately	$ 20.39
125	5304526375		Motor, Convection Fan				$ 211.58
161	140195758051		Element, Convection, 3800w, 240v, Rectangular   (Replaces: 5304526565)		Appelez-nous	-
58A	5304530428		Insulation, Oven, Rear				$ 21.32
6A	5304530447		Rack Assembly, Glide			Immediately	$ 270.70
6B	FRIGPEREAFT		Frig Air Fry Tray Peregrine			Immediately	$ 129.88
86A	5304530351		Hinge, Door, Brown, Double Spring			Immediately	$ 73.90
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 4.08
NI	5304530450		Anti Tip, Kit				$ 41.96
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304532105		Harness, Wiring, Upper Oven, Ds				$ 21.68
NI	387856311		Screw, 4.2 X 10				$ 3.37
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIB	5304526532		Screw, M4.2 X 9.5, Black				$ 3.37

    View Diagram in Separate Window       Print Part List
