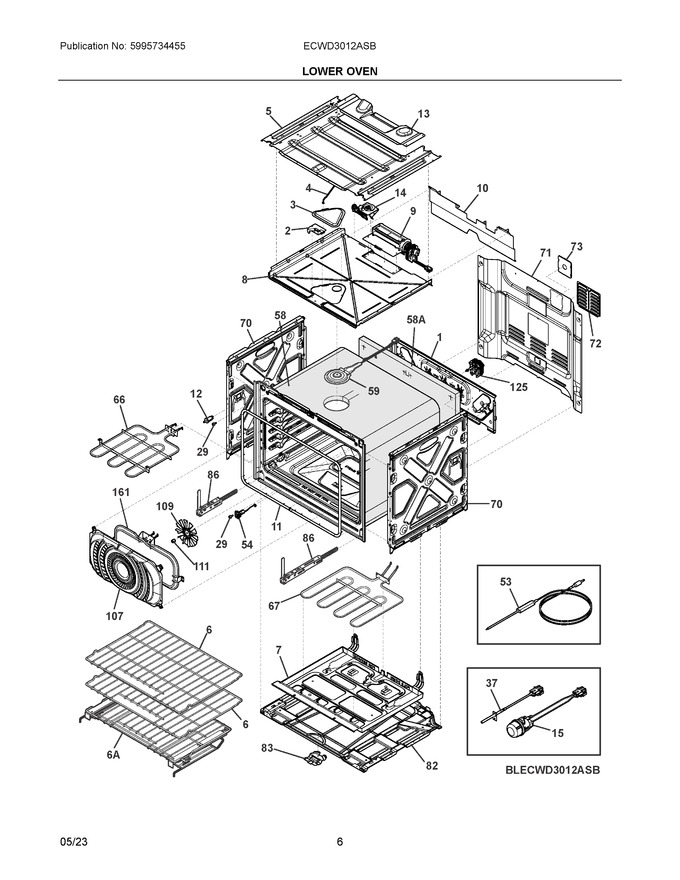

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526336		Panel, Rear		Appelez-nous	-
2	5304526367		Latch, Door				$ 16.85
3	5304526366		Cover, Vent		Appelez-nous	-
4	5304526368		Rod, Latch				$ 11.80
5	5304526313		Panel, Carrier Mid, Lower Dwo, Cooling		Appelez-nous	-
6	5304532107		Rack, Handled, Flat				$ 70.88
7	5304528326		Tray, Hidden Bake				$ 58.14
8	5304526320		Shield, Bottom Duct		Appelez-nous	-
9	140175789035		Blower Assembly, Lower Oven   (Replaces: 5304530369)				$ 116.29
10	5304530426		Shield, Insulation, Lower Oven, Dwo		Appelez-nous	-
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 160.10
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
13	5304526495		Shield, Baffle, Lower Dwo, Cooling		Appelez-nous	-
14	140282916018		Motor Assembly, Door Latch/lock   (Replaces: 5304526552)		Appelez-nous	-
15	5304533411		Lamp Assembly, Halogen, G9, 40w, 120v   (Replaces: 5304530343)			Immediately	$ 40.56
29	316517600		Bumper, Front, Main				$ 13.39
37	5304526310		Probe, Oven Sensor			Immediately	$ 47.97
53	807822611		Probe, Food, Red   (Replaces: 807822606)			Immediately	$ 27.85
54	140233289077		Receptacle, Meat Probe   (Replaces: 5304534016)				$ 30.60
58	140293845024		Insulation, Wrapper, Oven   (Replaces: 5304532774)		Appelez-nous	-
59	5304530445		Vent Assembly, Vent Tube, Heated, W/catalyst		Appelez-nous	-
66	5304536847		Element, Broil, 6 Pass, 4000w, 240v   (Replaces: 5304526370)			Immediately	$ 79.36
67	5304535239		Element, Hidden Bake, 8 Pass, 67 #, 2500w			Immediately	$ 63.21
70	5304526314		Panel, Side, Exterior				$ 78.70
71	5304526330		Shield, Rear Wire, Lower Dwo				$ 73.42
72	5304526588		Cover, Convection Mtr				$ 18.90
73	5304526551		Cover, Anti Vibration		Appelez-nous	-
82	5304526311		Panel, Exterior, Bottom		Appelez-nous	-
83	5304530453		Bracket, Base Panel, Mount				$ 9.35
86	5304530350		Hinge, Door, Brown, Soft Close				$ 137.78
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 16.01
111	561231207		Nut, Fan Blade			Immediately	$ 20.39
125	5304526375		Motor, Convection Fan				$ 182.00
161	140195758051		Element, Convection, 3800w, 240v, Rectangular   (Replaces: 5304526565)		Appelez-nous	-
58A	5304530428		Insulation, Oven, Rear				$ 21.32
6A	5304530447		Rack Assembly, Glide			Immediately	$ 221.67
86A	5304530351		Hinge, Door, Brown, Double Spring			Immediately	$ 73.90
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 24.94
NI	387856311		Screw, 4.2 X 10				$ 3.37
NI	5304530450		Anti Tip, Kit				$ 41.96
NI	5304530460		Harness, Wiring, Ovc, To Lower Cavity		Appelez-nous	-
NI	5304531337		Harness, Wiring, Lower, Meat Probe		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 171.61
NI	5304530449		Harness, Wiring, Lower Oven, Door Switch			Immediately	$ 51.51
NI	5304531338		Harness, Wiring, Main		Appelez-nous	-
NI	5304531339		Harness, Wiring, Lower Cavity, Ovc/high Volt		Appelez-nous	-
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 4.08
NI	5304530448		Harness, Ds Mdl, Lower Oven, Hall Effect				$ 46.57
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIB	5304526532		Screw, M4.2 X 9.5, Black				$ 3.37
