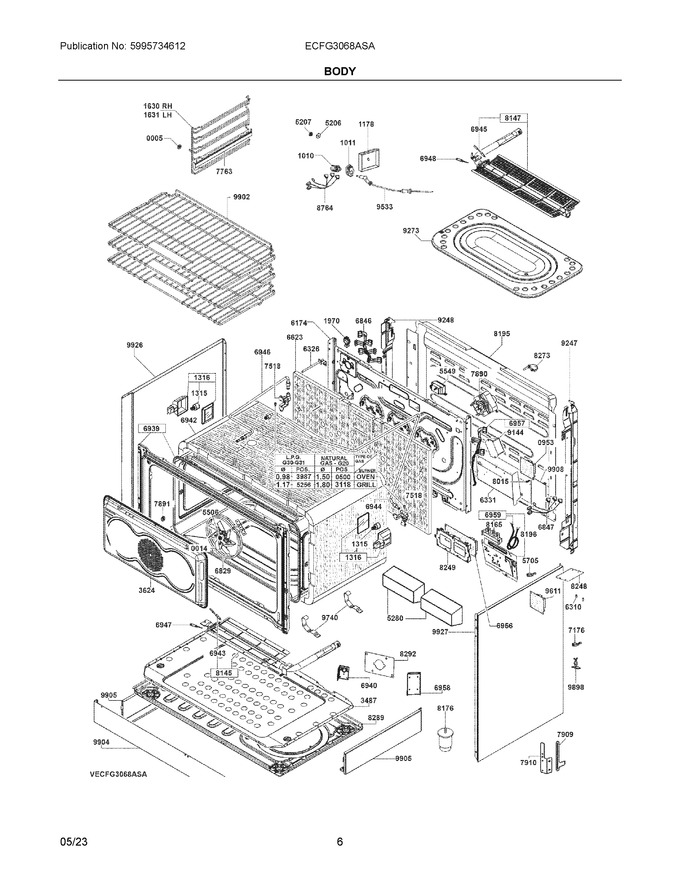

03 - Body
04 - Main Top
05 - Door / Cooling-venting
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5304527453 | Bushing, Rack Support |
|
- | |||||
| 14 | 5304527454 | Blade, Fan, Convection, 7 Vane |
|
$ 71.39 | |||||
| 500 | 5304532676 | Nozzle, Natural Gas, D. 1.50, Oven Bake |
|
- | |||||
| 953 | 5304532685 | Pc Board, Electronic Unit, Valve |
|
$ 430.41 | |||||
| 1010 | 4056034681 | Receptacle, Meat Probe (Replaces: 5304527481) |
|
- | |||||
| 1011 | 5304527482 | Cover, Receptacle, Meat Probe |
|
- | |||||
| 1178 | 5304531579 | Housing, Probe Shield |
|
- | |||||
| 1315 | 318946400 | Bulb, Oven Lamp, Halogen, 40w, 120v, (2) (Replaces: 5304527465) |
|
Immediately | $ 49.32 | ||||
| 1316 | 5304527466 | Lamp Assembly, Halogen, Oven, 40w, 120v, (2), W/bulb |
|
$ 145.80 | |||||
| 1630 | 5304532693 | Track, Oven Rack, Rh |
|
- | |||||
| 1631 | 5304532694 | Track, Oven Rack, Lh |
|
- | |||||
| 1970 | 5304527468 | Clamp, Cable, (6) |
|
- | |||||
| 3118 | 5304527435 | Orifice, Natural Gas, D.1, 80-18k Btu, External, (2), Dual Burner |
|
Immediately | $ 32.91 | ||||
| 3487 | 5304532695 | Burner Box, Bake, Bake |
|
- | |||||
| 3624 | 5304532696 | Cover, Covection Fan |
|
- | |||||
| 3987 | 5304532674 | Nozzle, Lp Gas, D. .098, Oven Bake |
|
- | |||||
| 5206 | 5304527489 | Washer |
|
- | |||||
| 5207 | 5304527490 | Nut |
|
- | |||||
| 5256 | 5304532679 | Orifice, Lp Gas, 1.17, Oven Burner |
|
- | |||||
| 5280 | 5304527475 | Counterweight, (2) |
|
- | |||||
| 5506 | 5304527436 | Nut, Fan Blade, Convection |
|
$ 75.08 | |||||
| 5549 | 5304532682 | Thermostat, Double, 220 Deg C |
|
- | |||||
| 5705 | 5304532678 | Clamp, Wiring |
|
- | |||||
| 6174 | 5304532697 | Panel, Back, Main |
|
- | |||||
| 6310 | 5304527491 | Spacer, (4) |
|
- | |||||
| 6326 | 5304527492 | Probe, Oven Temp, Pt1000 Ul |
|
Immediately | $ 210.47 | ||||
| 6331 | 5304527494 | Power Electronic, Unit |
|
$ 331.44 | |||||
| 6623 | 5304532698 | Insulation, Oven Back |
|
- | |||||
| 6829 | 5304532700 | Element, Convection |
|
- | |||||
| 6846 | 5304532701 | Harness, Wiring, Lh Side |
|
- | |||||
| 6847 | 5304532702 | Harness, Wiring |
|
- | |||||
| 6939 | 5304532703 | Liner, Oven Cavity |
|
- | |||||
| 6940 | 5304532704 | Guide, Oven Burner |
|
- | |||||
| 6942 | 5304532706 | Insulation, Oven Wrapper |
|
- | |||||
| 6943 | 5304532707 | Ignitor, Oven Burner |
|
- | |||||
| 6944 | 5304532708 | Tube, Supply, Oven Burner |
|
- | |||||
| 6945 | 5304532709 | Ignitor, Grill Burner |
|
- | |||||
| 6946 | 5304532710 | Tube, Supply, Grill Burner |
|
- | |||||
| 6947 | 5304532711 | Thermocouple, Oven Burner |
|
- | |||||
| 6948 | 5304532712 | Thermocouple, Grill Burner |
|
- | |||||
| 6956 | 5304532720 | Pc Board, Control |
|
$ 649.30 | |||||
| 6957 | 5304532721 | Harness, Wiring, Main |
|
- | |||||
| 6958 | 5304532722 | Support |
|
- | |||||
| 6959 | 5304532723 | Power Cord, Assembly |
|
- | |||||
| 7176 | 5304527437 | Clamp, Hose, Rte12000 |
|
- | |||||
| 7518 | 5304532673 | Nozzle, Support, Burner |
|
- | |||||
| 7763 | 5304527498 | Glide Kit, Oven Rack, Rh And Lh, Telescopic |
|
$ 240.61 | |||||
| 7890 | 5304527722 | Motor, Convection Fan, (2) |
|
Immediately | $ 237.12 | ||||
| 7891 | 5304531574 | Washer |
|
- | |||||
| 7909 | 5304527501 | Hook, Attachment |
|
- | |||||
| 7910 | 5304527502 | Support, Attachment Hook |
|
- | |||||
| 8015 | 5304527772 | Spacer, Electronic Unit |
|
- | |||||
| 8145 | 5304532687 | Burner Assembly, Oven Bake |
|
$ 127.81 | |||||
| 8147 | 5304532688 | Burner Assembly, Grill |
|
- | |||||
| 8165 | 5304527478 | Terminal Block, Electrical |
|
- | |||||
| 8176 | 5304527518 | Foot Assembly, Cabinet, (4), Adjustable |
|
$ 99.65 | |||||
| 8195 | 5304527519 | Panel, Main Back |
|
$ 228.22 | |||||
| 8196 | 5304527520 | Support, Junction Block |
|
- | |||||
| 8248 | 5304527524 | Shield, Feeder Board |
|
- | |||||
| 8249 | 5304532690 | Support, Pc Board |
|
- | |||||
| 8273 | 5304527697 | Clamp, Wiring |
|
- | |||||
| 8289 | 5304527526 | Base, Oven Bottom |
|
- | |||||
| 8292 | 5304532691 | Bracket, Grill Burner |
|
- | |||||
| 8764 | 5304527530 | Harness, Wiring, Meat Probe |
|
$ 146.01 | |||||
| 9144 | 5304527783 | Filter, Electrical |
|
$ 203.44 | |||||
| 9247 | 5304527457 | Brace, Oven, Rh Rear |
|
- | |||||
| 9248 | 5304527458 | Brace, Oven, Lh Rear |
|
- | |||||
| 9273 | 5304532692 | Panel, Oven Bottom |
|
- | |||||
| 9533 | 5304527535 | Probe, Meat Temp |
|
$ 181.40 | |||||
| 9611 | 5304527540 | Pc Board, Feeder, 120v-12/5v |
|
Immediately | $ 364.53 | ||||
| 9740 | 5304532681 | Clip, Insulation |
|
- | |||||
| 9898 | 5304527444 | Clip, Cable, Stringing |
|
- | |||||
| 9902 | 5304527563 | Rack, Oven, (3), Handled |
|
$ 152.43 | |||||
| 9904 | 5304527564 | Plinth, Front, Lower |
|
$ 210.83 | |||||
| 9905 | 5304527565 | Plinth Kit, Assembly, Lh And Rh Side |
|
$ 239.04 | |||||
| 9908 | 5304527568 | Shield, Protection |
|
- | |||||
| 9926 | 5304527573 | Panel, Body Side, Stainless, Lh |
|
$ 220.14 | |||||
| 9927 | 5304527574 | Panel, Body Side, Stainless, Rh |
|
$ 251.68 | |||||
| 6940A | 5304532705 | Cover, Protection |
|
- |
