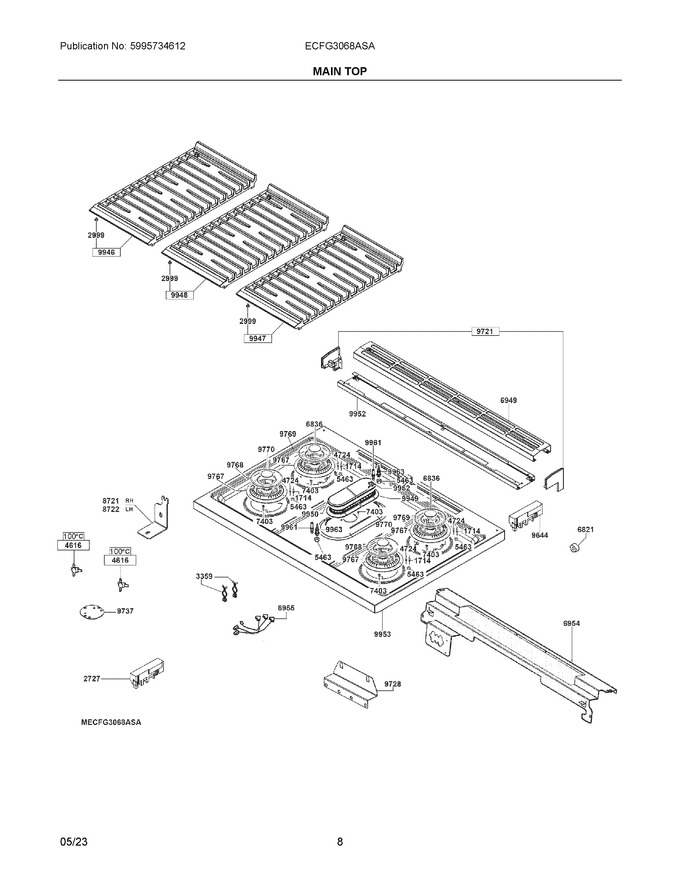

04 - Main Top
05 - Door / Cooling-venting
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1714 | 5304527484 | Thermocouple, +or Mm600 |
|
Immediately | $ 116.13 | ||||
| 2727 | 5304532680 | Module, Ignitor Spark |
|
Immediately | $ 142.77 | ||||
| 2999 | 5304531583 | Foot, Grate, Rubber |
|
Immediately | $ 31.86 | ||||
| 3359 | 5304527470 | Clip, Wiring, Spark Ignitor |
|
- | |||||
| 4616 | 5304532672 | Thermostat, Safety, 100 Deg C |
|
Immediately | $ 69.62 | ||||
| 4724 | 5304531588 | Ignitor, Spark, Top Burner |
|
Immediately | $ 75.83 | ||||
| 5463 | 5304527445 | Nut, Thermocouple, Top Burner |
|
$ 21.99 | |||||
| 6821 | 5304527440 | Spacer, Frame, Rear, (2) |
|
$ 23.51 | |||||
| 6836 | 5304527495 | Cap, Dual Burner, 12k, Black, Internal |
|
Immediately | $ 74.93 | ||||
| 6949 | 5304532713 | Trim, Vent Cover, Rear |
|
- | |||||
| 6954 | 5304532718 | Support, Cooktop, Rear |
|
- | |||||
| 6955 | 5304532719 | Harness, Cable, Thermostat |
|
- | |||||
| 7403 | 5304527460 | Screw, Burner, M4 X 8 |
|
- | |||||
| 8721 | 5304527528 | Bracket, Rh |
|
- | |||||
| 8722 | 5304527529 | Bracket, Lh |
|
- | |||||
| 9644 | 5304527443 | Module, Spark Ignitor, (2) |
|
Immediately | $ 184.94 | ||||
| 9721 | 5304527541 | Side Bracket, Kit, Rh And Lh, Rear |
|
$ 228.56 | |||||
| 9728 | 5304527543 | Bracket, Support, (2) |
|
$ 32.96 | |||||
| 9737 | 5304527547 | Plate, Cook Top, (2) |
|
- | |||||
| 9767 | 5304527550 | Burner, Support, Cook Top, Flame Spreader |
|
$ 132.51 | |||||
| 9768 | 5304527551 | Burner Cap, Flame Spreader, 18k, Brass, Lh/rh Front, (2) |
|
$ 215.48 | |||||
| 9769 | 5304527552 | Burner Cap, Flame Spreader, Black |
|
$ 231.51 | |||||
| 9770 | 5304527553 | Cap, Dual Burner, 18k, Brass, Lh/rh Front, (2) |
|
$ 118.46 | |||||
| 9946 | 5304527575 | Grate, Top Burner, Black, Lh, W/bumpers |
|
$ 283.79 | |||||
| 9947 | 5304527576 | Grate, Top Burner, Black, Rh, W/bumpers |
|
$ 265.21 | |||||
| 9948 | 5304527577 | Grate, Top Burner, Black, Center, W/bumpers |
|
$ 220.42 | |||||
| 9949 | 5304527578 | Burner, Support, Center, (2), Flame Spreader |
|
- | |||||
| 9950 | 5304527579 | Burner Cap, Flame Spreader, Black, (2), Center Burner |
|
$ 112.09 | |||||
| 9952 | 5304527581 | Bracket, Rear Trim |
|
$ 215.72 | |||||
| 9953 | 5304527582 | Maintop, Top Burners, Stainless |
|
Immediately | $ 453.31 | ||||
| 9961 | 5304527589 | Ignitor, Spark, Center, (2) |
|
$ 61.43 | |||||
| 9962 | 5304527590 | Clip, Spring, (5) |
|
- | |||||
| 9963 | 5304527591 | Thermocouple, Burner, Mm550, Center, (2) |
|
$ 93.74 |
