Blower & Motor Assembly

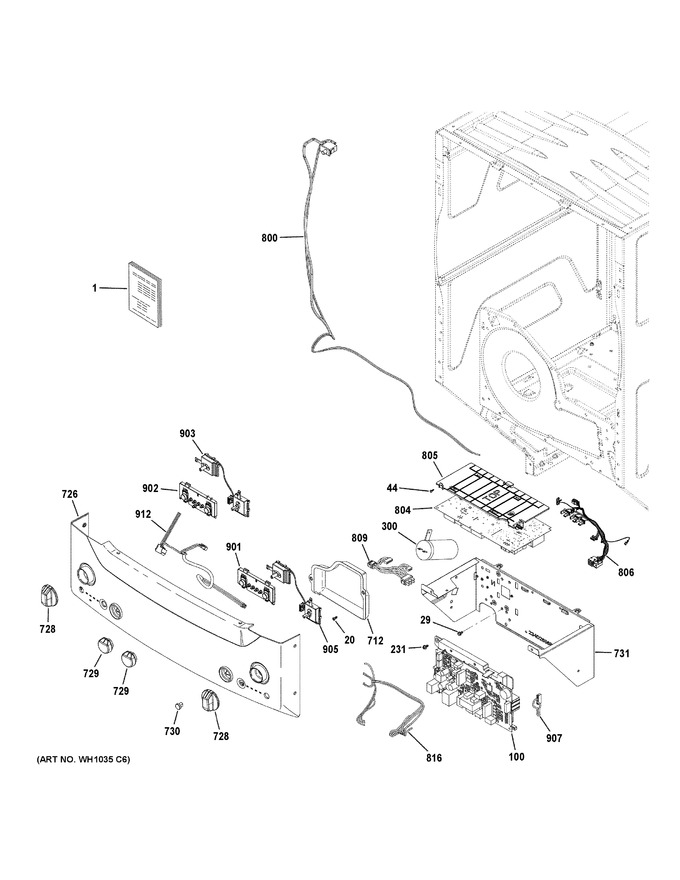

Controls & Backsplash
Drum
Dryer Cabinet
Dryer Front Panel & Door
Motor & Drive Assembly
Tub & Basket Assembly
Washer Cabinet & Lid
Water System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16781 | Pub Number Pm Installation Instruction |
|
- | |||||
| 1 | 49-90581 | Pub Number Manual Use & Care |
|
- | |||||
| 1 | 31-3000021 | Pm Mini Manual |
|
- | |||||
| 20 | WE2M302 | Screw |
|
- | |||||
| 29 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- | |||||
| 44 | WE2M282 | Scr 6-18 B B1q1 3/4 S Zn |
|
- | |||||
| 100 | WH22X28676 | Washer Main Board & Support |
|
- | |||||
| 231 | WE01X25535 | Scr 10-16 Gx Ihxw Q2 3/8 S Zn |
|
- | |||||
| 300 | WH12X27299 | Capacitor |
|
- | |||||
| 712 | WE13X28664 | Controls Support |
|
- | |||||
| 726 | WE22X28665 | Control Panel 27" |
|
- | |||||
| 728 | WW02L00500 | Knob Main Asm (Replaces: WE01X24552) |
|
Immediately | $ 16.97 | ||||
| 729 | WH01X24378 | Knob Options Asm |
|
- | |||||
| 730 | WE04X27654 | Button Start Asm |
|
- | |||||
| 731 | WE04X27287 | Enclosure Board 27" |
|
- | |||||
| 800 | WE08X28660 | Electric Dryer Main Harness |
|
- | |||||
| 804 | WE22X28671 | Dryer Main Board |
|
- | |||||
| 805 | WE13X28672 | Dryer Main Board Bracket |
|
- | |||||
| 806 | WE08X28673 | Electric Dryer Jumper Harness |
|
- | |||||
| 809 | WE15X27237 | Harness Ui Assembly Elec |
|
- | |||||
| 816 | WH19X27249 | Harness Fuse 27" Elec |
|
- | |||||
| 901 | WE22X28668 | Dryer Ui Board |
|
- | |||||
| 902 | WH22X28667 | Washer Ui Board |
|
- | |||||
| 903 | WH04X28666 | Washer Selector |
|
- | |||||
| 905 | WE22X28861 | Selector Asm |
|
- | |||||
| 907 | WE15X28674 | 27" Software Jumper Harness |
|
- | |||||
| 912 | WE08X28669 | Dryer Rj45 Harness & Connector |
|
- |
