Blower & Motor Assembly
Controls & Backsplash
Drum
Dryer Cabinet
Dryer Front Panel & Door
Motor & Drive Assembly
Tub & Basket Assembly
Washer Cabinet & Lid
Water System
SELECT A DIAGRAM
New Model Search:

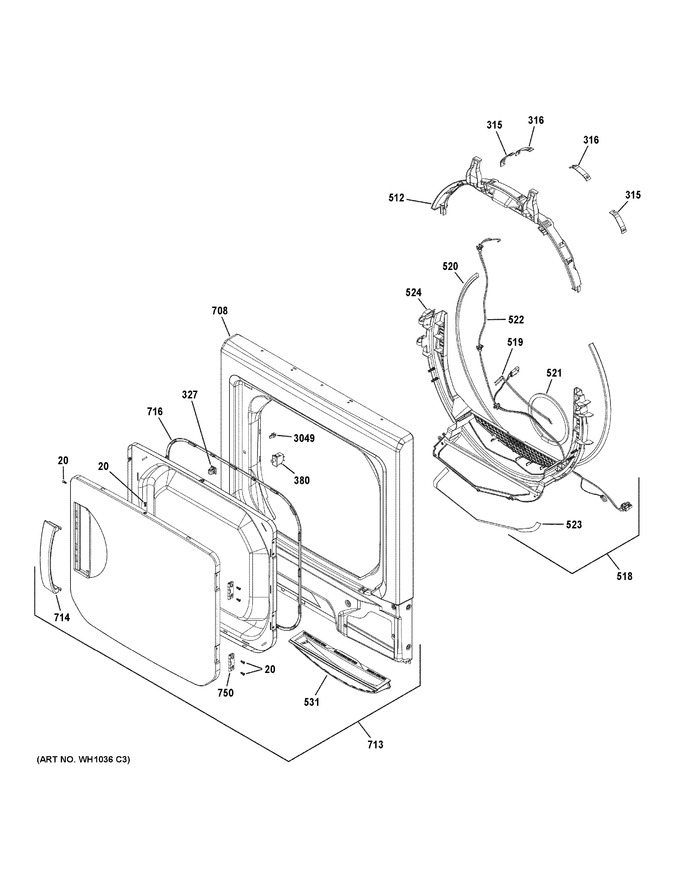

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WE2M302 | Screw |
|
- | |||||
| 315 | WW03A00015 | Bearing Slide (Replaces: WE3M51) |
|
Immediately | $ 6.33 | ||||
| 316 | WW02A00250 | Bearing Slide (Replaces: WE3M52) |
|
Immediately | $ 12.11 | ||||
| 327 | WE1M536 | Latch |
|
- | |||||
| 380 | WE4M415 | Door Switch |
|
- | |||||
| 512 | WE03X27250 | Top Bearing 27" |
|
- | |||||
| 518 | WE16X28661 | Duct Trap |
|
- | |||||
| 519 | WW02F00088 | Sensor Rods (Replaces: WE1M575) |
|
Immediately | $ 10.72 | ||||
| 520 | WE09X20441 | Felt Trap Duct |
|
- | |||||
| 521 | WE1M999 | Gasket Exhaust |
|
- | |||||
| 522 | WH08X28663 | Door Harness |
|
- | |||||
| 523 | WW03A00117 | Trap Duct / Front Seal (Replaces: WE1M574) |
|
$ 3.97 | |||||
| 524 | WE16X28662 | Duct Trap Body |
|
- | |||||
| 531 | WE18X25102 | Filter Lint |
|
- | |||||
| 708 | WW03L00031 | Panel Front (Replaces: WE20M472) |
|
$ 92.55 | |||||
| 713 | WE10M151 | Door Asm |
|
- | |||||
| 714 | WW03L00411 | Handle Door (Replaces: WE1M1068) |
|
Immediately | $ 18.78 | ||||
| 716 | WE01X25135 | Gasket Door |
|
- | |||||
| 750 | WW02L00028 | Hinge (Replaces: WE1M1033) |
|
Immediately | $ 9.92 | ||||
| 3049 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.97 |
