Body Parts


Escutcheon & Door Assembly


Motor-pump Mechanism


Rack Assemblies

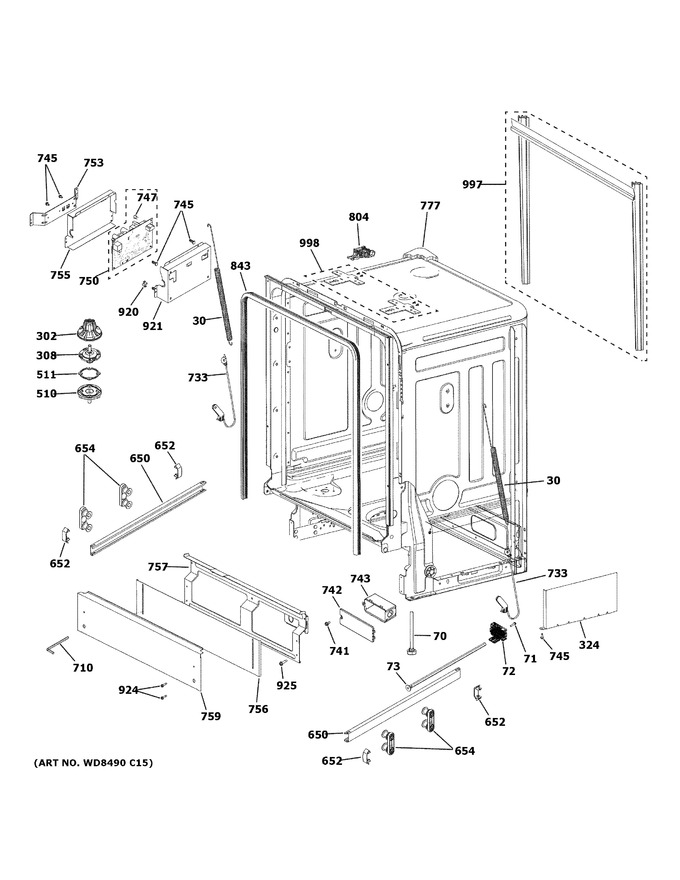

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	WD02X28998		Door Spring		Appelez-nous	-
70	WD02X25806		Leveling Leg		Appelez-nous	-
71	WD02X28902		Rear Adjustable Leg Screw		Appelez-nous	-
72	WD01X28282		Rear Adjustable Leg		Appelez-nous	-
73	WD02X28280		Rear Leg Adjustor Rod		Appelez-nous	-
302	WD12X24658		Flood Float Cover		Appelez-nous	-
308	WD12X24657		Flood Float & Switch Asm		Appelez-nous	-
324	WD01X24708		Wash Pump Shield		Appelez-nous	-
510	WD12X24659		Flood Float Stem		Appelez-nous	-
511	WD08X24660		Flood Float Stem Gasket		Appelez-nous	-
650	WD30X25805		Upper Rack Slide		Appelez-nous	-
652	WD12X24354		Rack Slide End Cap				$ 14.99
654	WD30X24688		Rack Slide Support		Appelez-nous	-
710	WD02X28899		Adjustment Wrench		Appelez-nous	-
733	WD02X24746		Pulley Cable Assembly		Appelez-nous	-
741	WH02X26236		Screw M4*10		Appelez-nous	-
742	WD01X28880		Junction Box Cover		Appelez-nous	-
743	WD01X28879		Junction Box		Appelez-nous	-
745	WJ01X23759		Screw		Appelez-nous	-
747	WD21X24482		Control Board Fuse 3.1a		Appelez-nous	-
750	WD21X24676		Main Control Board		Appelez-nous	-
753	WD01X24634		Control Box Bracket		Appelez-nous	-
755	WD01X24635		Control Box Front		Appelez-nous	-
756	WD27X28938		Adjustable Toe Kick		Appelez-nous	-
757	WD30X28878		Front Frame Brace		Appelez-nous	-
759	WD27X28939		Toe Kick		Appelez-nous	-
777	WD30X26201		Tub Insulation Blanket		Appelez-nous	-
804	WD12X24648		Door Striker Asm		Appelez-nous	-
843	WD08X24750		Tub Gasket		Appelez-nous	-
920	WD02X24632		Control Board Clip		Appelez-nous	-
921	WD01X24633		Control Box Back		Appelez-nous	-
924	WD02X24608		Screw		Appelez-nous	-
925	WD02X24614		Ground Screw		Appelez-nous	-
997	WD01X27198		Trim Kit		Appelez-nous	-
998	WD02X25400		24" Mounting Brackets Kit		Appelez-nous	-
