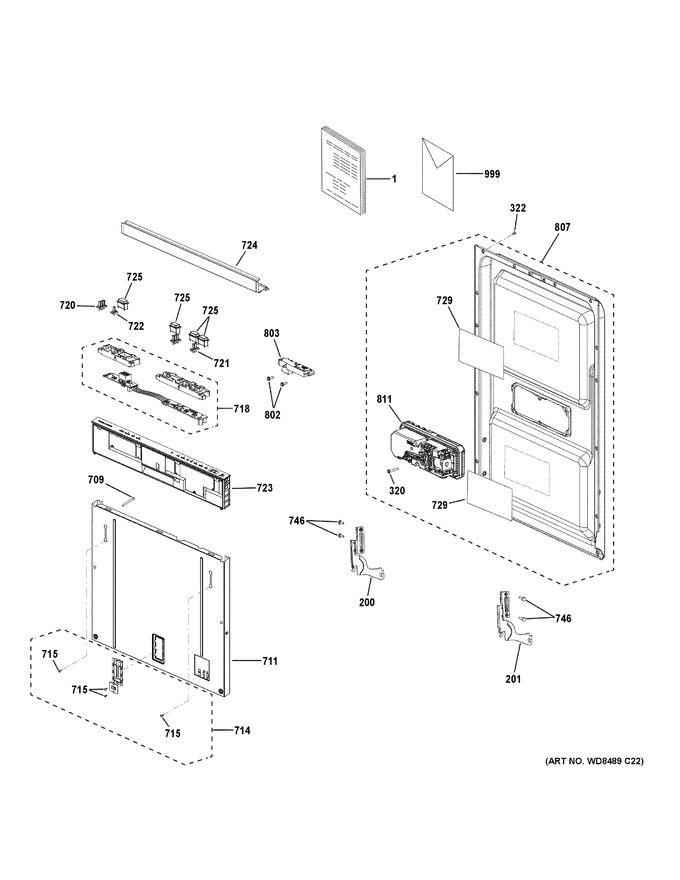

Escutcheon & Door Assembly


Motor-pump Mechanism


Rack Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30895		Pm Mini-manual		Appelez-nous	-
1	49-55124		Pm Owners Manual		Appelez-nous	-
1	31-4000247		Pm Install Instructions		Appelez-nous	-
1	31-4000242		Pm Template		Appelez-nous	-
200	WD01X24738		Hinge Mechanism Lh		Appelez-nous	-
201	WD01X24739		Hinge Mechanism Rh		Appelez-nous	-
320	WD02X24690		Screw		Appelez-nous	-
322	WD02X27558		Screw		Appelez-nous	-
709	WD02X28898		Custom Door Screw		Appelez-nous	-
711	WD27X28903		Outer Door Panel Assembly		Appelez-nous	-
714	WD02X31458		Custom Door Lower Lock Kit		Appelez-nous	-
715	WD02X28900		Custom Door Lower Lock & Door Hanging Sc		Appelez-nous	-
718	WD21X28718		Ui Control Asm		Appelez-nous	-
720	WD02X26239		Light Pipe 3		Appelez-nous	-
721	WD02X26241		Light Pipe 2		Appelez-nous	-
722	WD02X26240		Light Pipe 1		Appelez-nous	-
723	WD34X28358		Console 24" Integrated Door		Appelez-nous	-
724	WD01X28901		Filler Bracket Assembly		Appelez-nous	-
725	WD09X24601		Buttons Dorian Grey		Appelez-nous	-
729	WD01X25807		Door Supporting Foam		Appelez-nous	-
746	WD02X24617		Screw		Appelez-nous	-
802	WD02X24697		Screw Latch Asm		Appelez-nous	-
803	WD12X24644		Door Latch		Appelez-nous	-
807	WD27X32800		Inner Door Asm		Appelez-nous	-
811	WD12X32801		Detergent Module		Appelez-nous	-
999	WD02X29298		Custom Door Template And Install Kit		Appelez-nous	-
