Blower & Motor Assembly
Controls & Backsplash
Drum
Dryer Cabinet

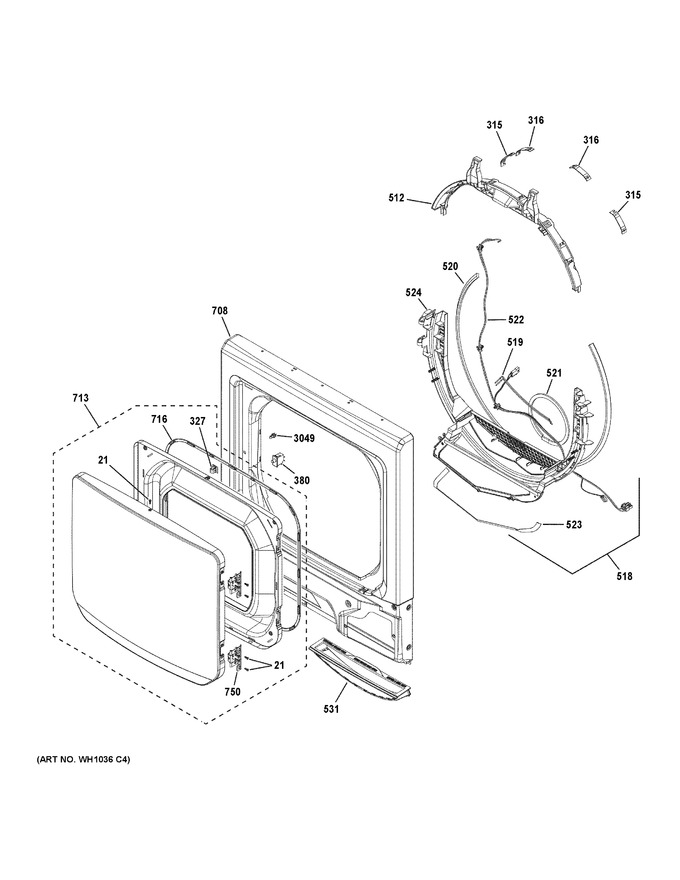

Dryer Front Panel & Door
Motor & Drive Assembly
Tub & Basket Assembly
Washer Cabinet & Lid
Water System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | WE02X36417 | Scr 8-15 B Pnq2 7/8 S |
|
- | |||||
| 315 | WW03A00015 | Bearing Slide (Replaces: WE3M51) |
|
Immediately | $ 6.33 | ||||
| 316 | WE03X34318 | Bearing Slide |
|
- | |||||
| 327 | WE1M536 | Latch |
|
- | |||||
| 380 | WE4M415 | Door Switch |
|
- | |||||
| 512 | WE1M1005 | Support Top Bearing |
|
- | |||||
| 518 | WE16X28661 | Duct Trap |
|
- | |||||
| 519 | WW02F00088 | Sensor Rods (Replaces: WE1M575) |
|
Immediately | $ 10.72 | ||||
| 520 | WE09X27634 | Felt Trap Duct |
|
- | |||||
| 521 | WE1M999 | Gasket Exhaust |
|
- | |||||
| 522 | WH08X28663 | Door Harness |
|
- | |||||
| 523 | WW03A00117 | Trap Duct / Front Seal (Replaces: WE1M574) |
|
$ 3.97 | |||||
| 524 | WE16X28662 | Duct Trap Body |
|
- | |||||
| 531 | WE18X25102 | Filter Lint |
|
- | |||||
| 708 | WE10X36425 | Front Panel Diamond Gray Lc Dryer |
|
- | |||||
| 713 | WE10X36426 | Dryer Door Diamond Gray Lc |
|
- | |||||
| 716 | WE01X25135 | Gasket Door |
|
- | |||||
| 750 | WE01X36427 | Dryer Door Hinge Lc |
|
- | |||||
| 3049 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.97 |
