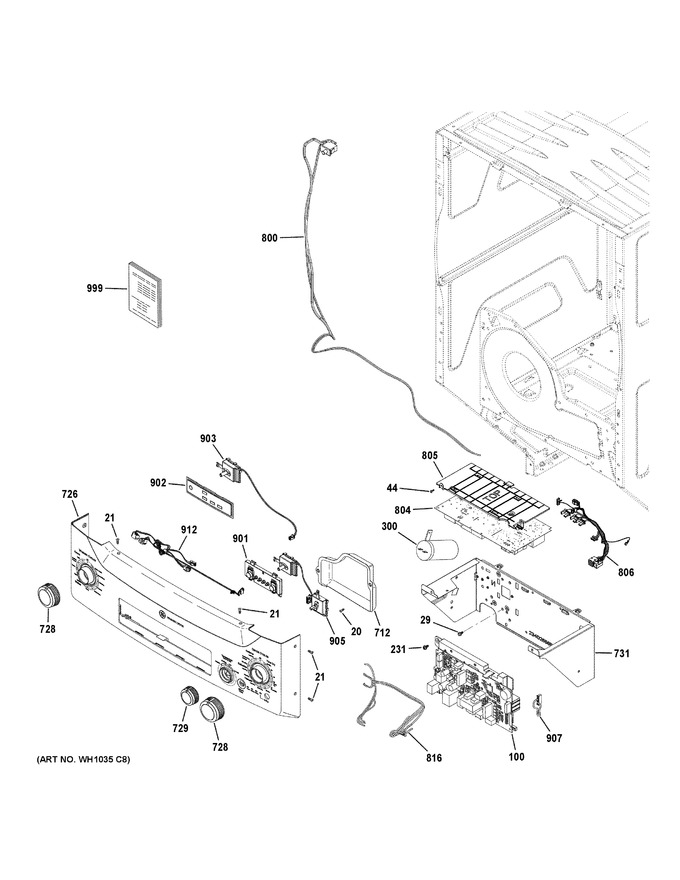

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WE2M302 | Scr 8-15 B Pnq2 7/8 |
|
- | |||||
| 21 | WE02X36417 | Scr 8-15 B Pnq2 7/8 S |
|
- | |||||
| 29 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- | |||||
| 44 | WE2M282 | Scr 6-18 B B1q1 3/4 S Zn |
|
- | |||||
| 100 | WH22X36558 | Washer Main Control Board & Support Lc |
|
- | |||||
| 231 | WE01X25535 | Scr 10-16 Gx Ihxw Q2 3/8 S Zn |
|
- | |||||
| 300 | WH12X27299 | Capacitor |
|
- | |||||
| 712 | WE13X28664 | Controls Support |
|
- | |||||
| 726 | WE22X36557 | Control Panel Diamond Gray Lc |
|
- | |||||
| 728 | WE01X36418 | Cycle Selector Knob Lc |
|
- | |||||
| 729 | WE01X36419 | Options Knob Lc |
|
- | |||||
| 731 | WE04X27287 | Enclosure Board 27" |
|
- | |||||
| 800 | WE08X28660 | Electric Dryer Main Harness |
|
- | |||||
| 804 | WE22X32938 | Control Board & Chassis |
|
- | |||||
| 805 | WE13X28672 | Dryer Main Board Bracket |
|
- | |||||
| 806 | WE08X28673 | Electric Dryer Jumper Harness |
|
- | |||||
| 816 | WH19X27249 | Harness Fuse 27" Elec |
|
- | |||||
| 901 | WE04X29962 | Dryer User Interface Board |
|
- | |||||
| 902 | WH22X36421 | Ui Board & Chassis Lc Washer |
|
- | |||||
| 903 | WH04X36422 | Washer Selector Switch Lc |
|
- | |||||
| 905 | WE22X28861 | Selector Asm |
|
- | |||||
| 907 | WH08X36423 | Software Jumper Harness 27" Lc Washer |
|
- | |||||
| 912 | WE08X36424 | Jumper Harness Mc To Ui & Rj45 |
|
- | |||||
| 999 | 49-3000359 | Pm Owners Manual |
|
- | |||||
| 999 | 31-3000361 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 31-3000360 | Pm Install Instructions |
|
- |
