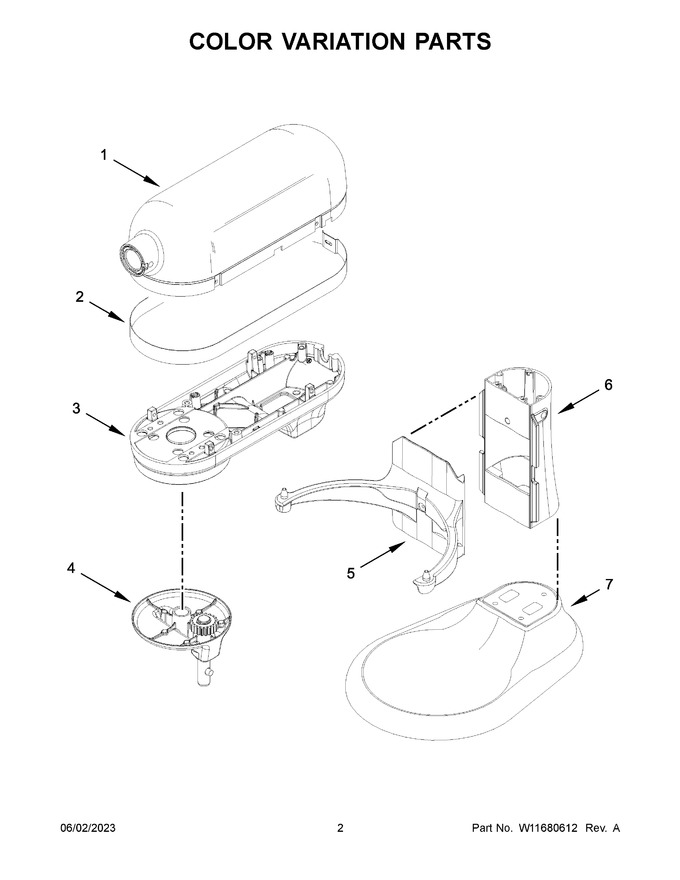

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10327951 | Motor Housing (contour Silver) |
|
$ 71.00 | |||||
| 2 | W10540366 | Trim Band (dark Platinum) |
|
$ 39.40 | |||||
| 3 | W11638566 | Lower Gearcase (silver) (Replaces: W10234491) |
|
- | |||||
| 4 | W10812692 | Planetary (chrome) (Replaces: W10540185) |
|
Immediately | $ 81.83 | ||||
| 5 | W10327966 | Bowl Support And Pins (contour Silver) |
|
- | |||||
| 6 | W10328003 | Column And Pins (contour Silver) |
|
- | |||||
| 7 | W10328017 | Base And Foot Assembly (contour Silver) |
|
- |
