SELECT A DIAGRAM

01 - Cover Sheet


02 - Color Variation Parts

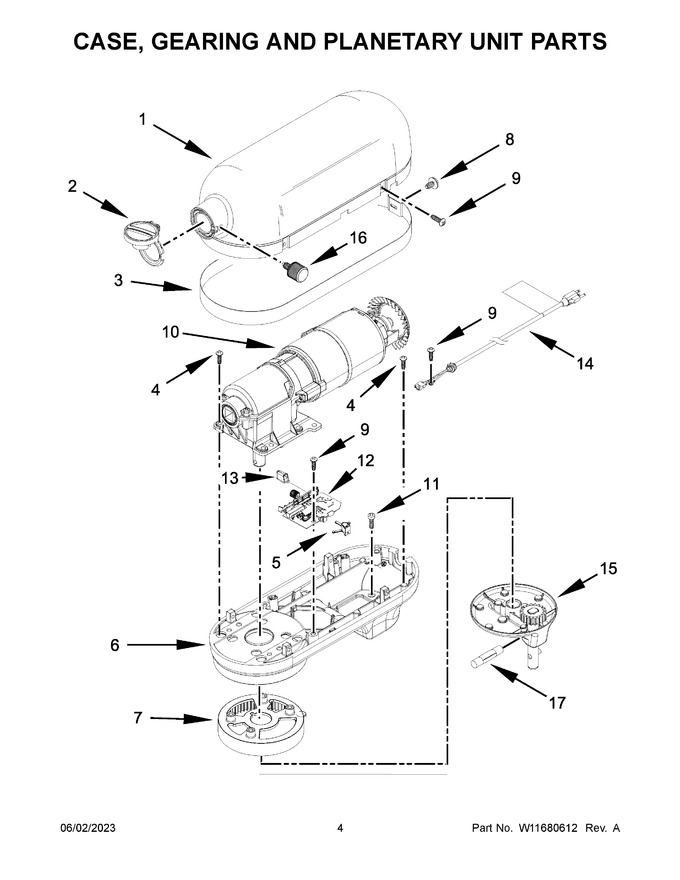

03 - Case, Gearing And Planetary Unit Parts


04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
2	W11123129		Cap, Attachment Hub, Hinged   (Replaces: W10394928)				$ 19.69
3	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
4	W10914506		Screw   (Replaces: W10351843)				$ 4.59
5	WPW10305968		Holder, Control   (Replaces: W10305968)				$ 4.33
6	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
7	W10234493		Gear, Ring And Plate Assembly				$ 8.95
8	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
9	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
10	WPW10517938		Motor, 120 Volt Assembly   (Replaces: W10517938)			Immediately	$ 191.49
11	W10913677		Screw   (Replaces: 3400200)				$ 4.64
12	WPW10487697		Control Assembly, 120 Volt   (Replaces: W10487697)				$ 181.60
13	W11736463		Guard, Switch   (Replaces: W10720795)		Appelez-nous	-
14	W11778320		Cord, Power (orange)   (Replaces: W11199160)				$ 19.76
15	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
16	WPW10360791		Thumb Screw (black)   (Replaces: W10360791)				$ 10.68
17	WPW10234531		Pin, Groove   (Replaces: W10234531)			Immediately	$ 5.29

    View Diagram in Separate Window       Print Part List
