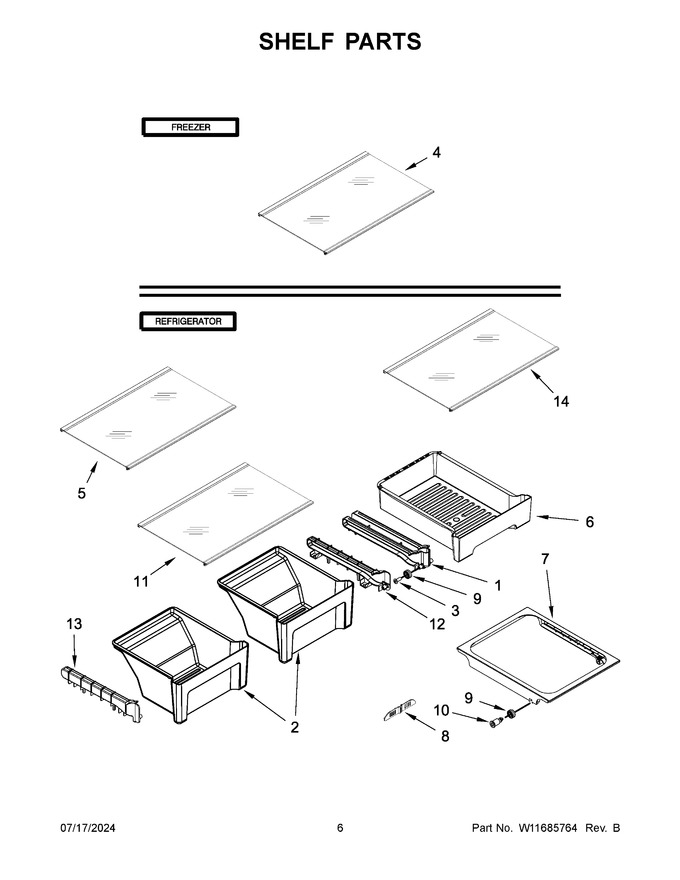

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773992 | Rail, Center Track (Replaces: W11526406) |
|
Immediately | $ 32.11 | ||||
| 2 | W10860753 | Assembly, Crisper Pan (Replaces: W10668872) |
|
$ 141.25 | |||||
| 3 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 4 | W11674479 | Assembly, Fc Shelf (Replaces: W11553150) |
|
$ 230.29 | |||||
| 5 | W11674478 | Assembly, Rc Shelf (Replaces: W11553146) |
|
$ 230.49 | |||||
| 6 | W10861806 | Pan, Meat (Replaces: W10714006) |
|
$ 197.34 | |||||
| 7 | W10861519 | Holder, Meat Pan (Replaces: W10628698) |
|
Immediately | $ 92.16 | ||||
| 8 | W11590562 | Control, Humidity (Replaces: W10356844) |
|
$ 23.45 | |||||
| 9 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 15.74 | ||||
| 10 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.90 | ||||
| 11 | W11674475 | Shelf Assembly, Crisper (Replaces: W11553145) |
|
$ 230.43 | |||||
| 12 | W11084244 | Rail, Track (right Hand) (Replaces: W11526405) |
|
Immediately | $ 99.24 | ||||
| 13 | W11818646 | Rail, Track (left Hand) (Replaces: W11526404) |
|
Immediately | $ 31.03 | ||||
| 14 | WPW10628707 | Assembly, Shelf (Replaces: W10628707) |
|
Immediately | $ 230.98 |
