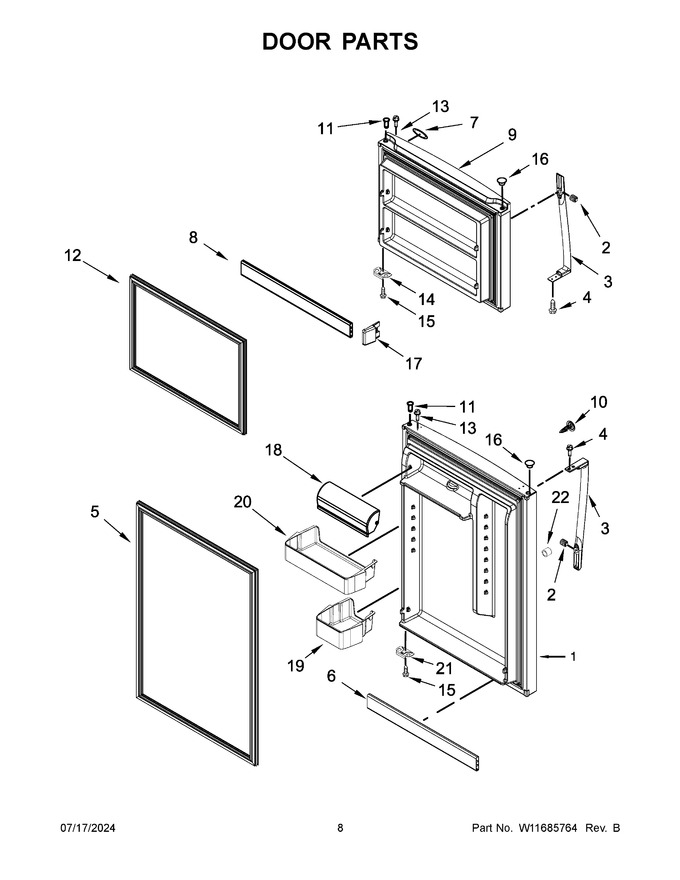

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10818792		Refrigerator Door (includes Door Gasket) (dolos Steel)   (Replaces: W10818792)				$ 753.58
2	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
3	W10837029		Handle, Door (stainless)   (Replaces: W10653471)			Immediately	$ 188.68
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	W11784834		Gasket, Door (grey)   (Replaces: W11030683)			Immediately	$ 223.35
6	W10592149		Trim, Door				$ 95.13
7	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
8	W10592151		Trim, Door				$ 93.32
9	LW10818787		Freezer Door (includes Door Gasket) (dolos Steel)   (Replaces: W10818787)				$ 767.68
10	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 19.54
11	W11676573		Thimble (grey)   (Replaces: W10492022)				$ 14.81
12	W11574983		Gasket, Door (grey)   (Replaces: W11030682)				$ 92.37
13	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	W10276642		Screw   (Replaces: 8533904)				$ 6.41
16	WP2254517		Plug, Hole (grey)   (Replaces: 2254517)			Immediately	$ 24.34
17	W10838039		Cap, Trim End   (Replaces: W10592153)			Immediately	$ 55.68
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
19	WPW10308867		Bin Short   (Replaces: W10308867)				$ 73.84
20	WPW10308868		Bin, Large Door   (Replaces: W10308868)			Immediately	$ 89.09
21	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
22	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 16.11
