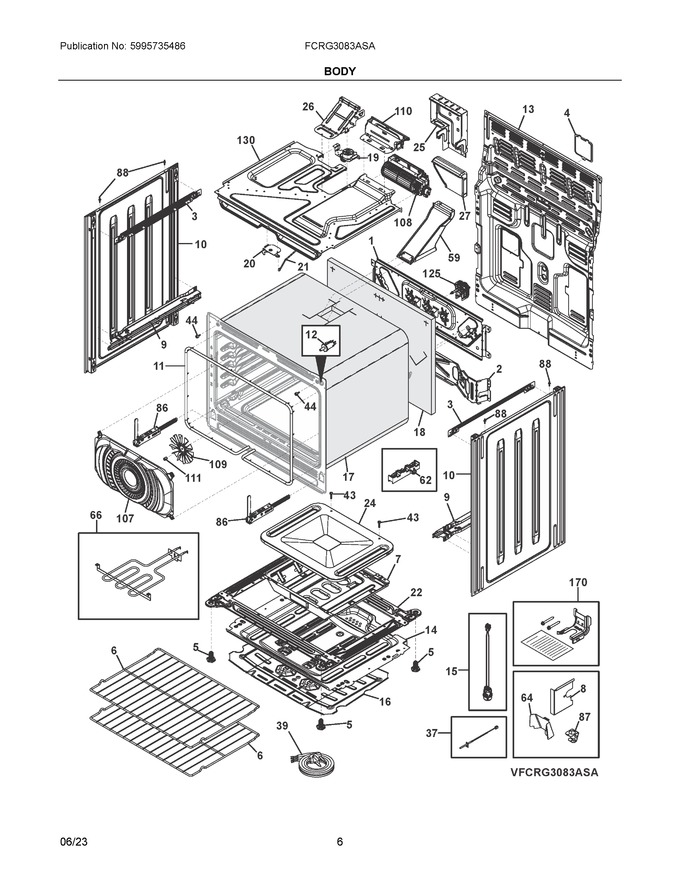

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533416 | Bracket, Rear Components, Upper |
|
- | |||||
| 2 | 5304533425 | Bracket, Components, Lower |
|
$ 67.91 | |||||
| 3 | 5304526493 | Bracket, Side Panel, Cooling |
|
$ 16.80 | |||||
| 4 | 5304528328 | Cover, Wiring |
|
$ 9.61 | |||||
| 5 | 316272900 | Screw, Leveling, Plastic, Rear, (2) |
|
Immediately | $ 30.55 | ||||
| 6 | 5304531722 | Rack, Oven, Wire, Flat (Replaces: 5304526378) |
|
Immediately | $ 56.72 | ||||
| 7 | 140169549064 | Box, Burner, Bake (Replaces: 5304534661) |
|
- | |||||
| 8 | 5304533923 | Cover, Terminal Block |
|
- | |||||
| 9 | 5304528546 | Receptacle, Hinge Carrier |
|
Immediately | $ 38.31 | ||||
| 10 | 5304526334 | Panel, Body Side, Black |
|
Immediately | $ 153.87 | ||||
| 11 | 5304526243 | Seal, Door |
|
Immediately | $ 57.63 | ||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 48.93 | ||||
| 13 | 5304533842 | Shield, Rear Wire |
|
- | |||||
| 14 | 5304533860 | Shield, Insulation, Lower |
|
- | |||||
| 15 | 5304533411 | Lamp Assembly, Oven, G9 40w, Halogen |
|
Immediately | $ 40.56 | ||||
| 16 | 5304533453 | Shield, Drawer Storage, Full |
|
- | |||||
| 17 | 5304528185 | Insulation, Wrapper |
|
- | |||||
| 18 | 5304528187 | Insulation, Oven Back |
|
- | |||||
| 19 | 5304528260 | Motor, Latch, W/bracket |
|
Immediately | $ 53.82 | ||||
| 20 | 5304528257 | Latch Assembly |
|
Immediately | $ 21.06 | ||||
| 21 | 5304528258 | Rod, Door Latch |
|
Immediately | $ 4.53 | ||||
| 22 | 5304533415 | Base Rail, Assembly |
|
Immediately | $ 152.96 | ||||
| 24 | 5304535291 | Bottom, Oven, Midnight Black (Replaces: 5304534692) |
|
$ 108.60 | |||||
| 25 | 5304533917 | Shield, Heat, Rear |
|
- | |||||
| 26 | 5304534669 | Shield, Heat, Front |
|
- | |||||
| 27 | 5304533916 | Flue, Collector, Assembly |
|
- | |||||
| 37 | 5304533448 | Probe, Oven Temp, Sensor |
|
Immediately | $ 54.60 | ||||
| 39 | 5304534691 | Cord, Power |
|
$ 77.27 | |||||
| 43 | 316282700 | Screw, 8-18 X 1.438, Oven Bottom (Replaces: 3131732) |
|
$ 11.03 | |||||
| 44 | 316517600 | Bumper, Front, Main |
|
$ 13.39 | |||||
| 59 | 5304534664 | Flue, Assembly |
|
- | |||||
| 62 | 5303935271 | Terminal Block Kit |
|
$ 81.73 | |||||
| 64 | 5304528550 | Shield, Terminal Block |
|
$ 10.56 | |||||
| 66 | 5304533847 | Element, Broil, 6 Pass |
|
$ 61.17 | |||||
| 86 | 5304535349 | Hinge, Oven Door, Yellow, 2 Spring |
|
$ 45.81 | |||||
| 87 | 5304533922 | Bracket, Power Cord |
|
$ 9.04 | |||||
| 88 | 316099501 | Pin, Guide |
|
- | |||||
| 107 | 5304526364 | Cover, Fan, Midnight Black, Convection |
|
- | |||||
| 108 | 5304537802 | Blower Assembly (Replaces: 5304528167) |
|
Immediately | $ 123.76 | ||||
| 109 | 5304525455 | Blade, Fan, Convection |
|
$ 16.01 | |||||
| 110 | 5304528418 | Duct Assembly, Exhaust, Cooling |
|
- | |||||
| 111 | 561231207 | Nut, Fan Blade |
|
Immediately | $ 20.39 | ||||
| 125 | 5304528165 | Motor, Convection Fan |
|
Immediately | $ 84.20 | ||||
| 130 | 5304534670 | Duct Assembly, Cooling |
|
- | |||||
| 170 | 316112010 | Anti Tip Kit, Assy, 30", W/template |
|
Immediately | $ 25.62 | ||||
| NI | 5304533469 | Standoff, Harness, Plastic |
|
- | |||||
| NI | 349479702 | Screw, Pt T20, 4 X 10, Black |
|
$ 2.54 | |||||
| NI | 387854510 | Screw, Din 7981, 4, 2 X 9, 5, (9) |
|
- | |||||
| NI | 5304534088 | Harness, Wiring, Main |
|
$ 142.60 | |||||
| NI | 5304534695 | Screw, Self Drill, M3.5 X 9.5 |
|
$ 4.08 | |||||
| NI | 5304535310 | Harness |
|
$ 78.30 | |||||
| NI | 5304533471 | Screw, T20, 4.4 X 13 |
|
- | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 387872717 | Screw, M4, 2 X 10, Black, W/washer |
|
- | |||||
| NI | 5304538919 | Screw, T20 Washer, 4.5 X 14.5 (Replaces: 5304533472) |
|
- | |||||
| NIA | 5304526532 | Screw, M4.2 X 9.5, Black |
|
$ 3.37 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.37 | |||||
| NIA | 387856311 | Screw, 4.2 X 10 |
|
$ 3.37 | |||||
| NIA | 5304533495 | Screw, Sd Hex Washer, 4.2 X 12.7 |
|
- | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 12.60 | |||||
| NIC | 5304528293 | Screw, T20, 8-18 X .79 |
|
- |
