01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body

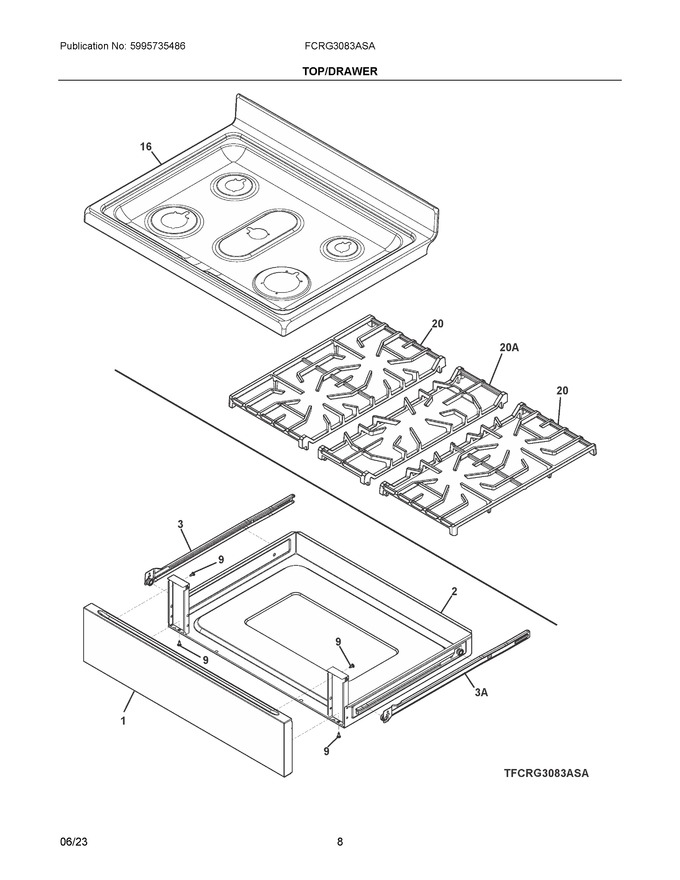

05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526300 | Panel, Drawer, Stainless, Outer |
|
$ 114.82 | |||||
| 2 | 5304526448 | Drawer Assembly, Utility, W/inner Glides |
|
Immediately | $ 172.06 | ||||
| 3 | 5304526306 | Glide, Drawer, Black, Lh Outer |
|
Immediately | $ 23.71 | ||||
| 9 | 5304526533 | Screw, T15, 8-18 1/2, Black |
|
$ 2.58 | |||||
| 11 | 5304526287 | Clip, Alignment, Cooktop |
|
- | |||||
| 16 | 316610078 | Main Top, Black |
|
$ 186.09 | |||||
| 20 | 5304535359 | Grate, Burner, Side |
|
Immediately | $ 108.82 | ||||
| 20A | 5304534694 | Grate, Burner, Center |
|
Immediately | $ 144.57 | ||||
| 3A | 5304526307 | Glide, Drawer, Black, Rh Outer |
|
Immediately | $ 23.71 | ||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- |
