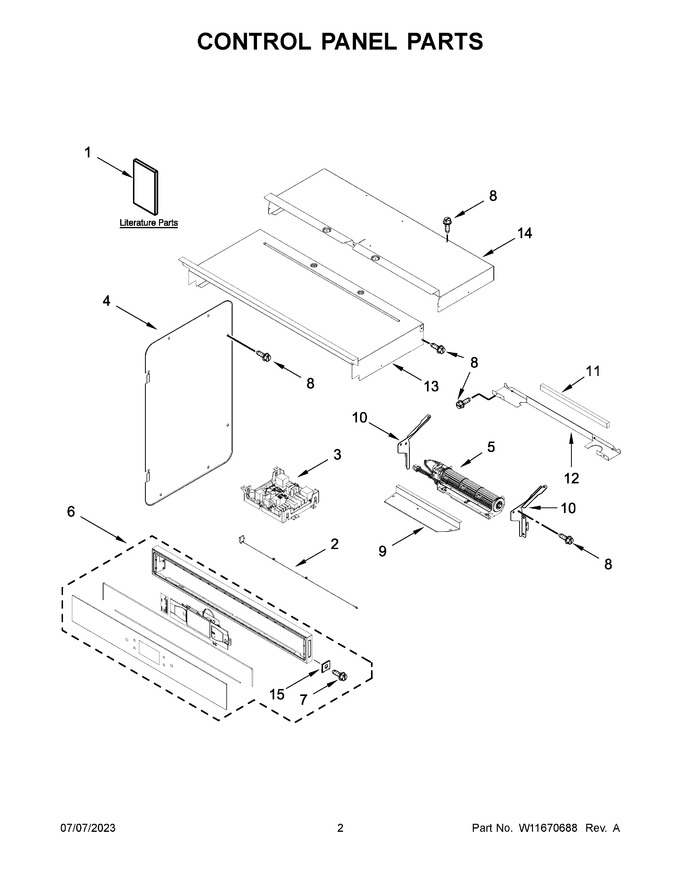

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11655510		Owner's Manual		Appelez-nous	-
2	W11537624		Antenna   (Replaces: W11409842)				$ 106.06
3	W11261165		Appliance Manager, Copernicus (with Power Supply)   (Replaces: W11253186)			Immediately	$ 349.13
4	W10655467		Chassis, Combo Side				$ 83.02
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	W11670522		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11639721)				$ 1,077.17
7	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
8	7101P42660		Screw		Appelez-nous	-
9	W10681157		Cover, Combo Blower		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W11166802		Divider, Chassis Back		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30 In		Appelez-nous	-
14	W10588732		Chassis, Cover Top Back 30 In				$ 225.86
15	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11553919		Quick Start Guide		Appelez-nous	-
1B	W11623559		Tech Sheet		Appelez-nous	-
NI	W11356990		Harness, Communication				$ 224.43
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
NI	W11731943		Harness, Main   (Replaces: W11659368)			Immediately	$ 334.06
NI	4448664		Clamp, Conduit				$ 21.41
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11555848		Harness, Input		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11797348		Harness, Interlock   (Replaces: W11555169)				$ 129.73
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 30.24
NI	W11539494		Harness, Inverter				$ 43.39
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 78.88
NI	W11256629		Harness, Signal		Appelez-nous	-
NI	W11356991		Harness, Ground Console Combo		Appelez-nous	-
