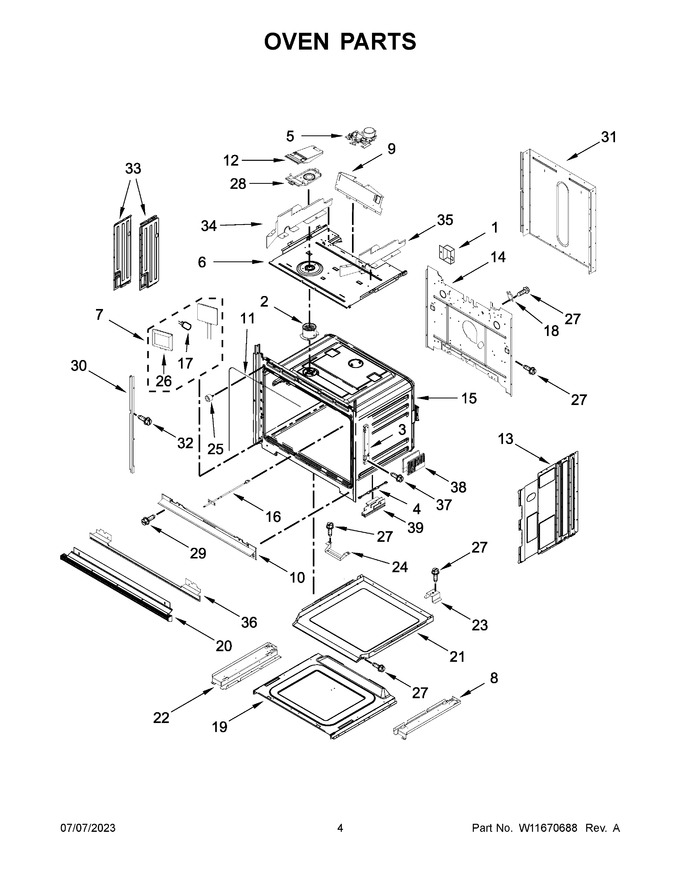

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 89.40
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 18.14
5	W11811612		Latch, Motorized   (Replaces: W11132456)			Immediately	$ 69.86
6	W11168071		Top, Chassis		Appelez-nous	-
7	W11292252		Assembly, Oven Light   (Replaces: W11205574)			Immediately	$ 107.48
8	W10283021		Support, Base (right)		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 169.79
10	W11743956		Vent, Combo Center   (Replaces: W11518347)				$ 171.29
11	W11676903		Gasket   (Replaces: W11262567)			Immediately	$ 72.57
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 80.99
14	W11223327		Back, Chassis		Appelez-nous	-
15	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 41.75
17	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 75.86
20	W11648980		Assembly, Bottom Vent (stainless)   (Replaces: W11467754)			Immediately	$ 185.39
21	W11244446		Duct, Bottom Chassis				$ 70.25
22	W10283020		Support, Base (left)		Appelez-nous	-
23	W11135135		Support, Air Channel				$ 36.15
24	W11731183		Spacer, Chassis Bottom Duct   (Replaces: W11390667)				$ 38.85
25	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 23.37
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
27	7101P42660		Screw		Appelez-nous	-
28	W11256423		Base, Vent Exhaust		Appelez-nous	-
29	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
30	W11235457		Trim, Side (black (left))				$ 79.72
31	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
32	W11602623		Screw   (Replaces: W11404000)				$ 14.23
33	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 74.06
34	W11186391		Deflector, Chassis (left)		Appelez-nous	-
35	W11186398		Deflector, Chassis (right)		Appelez-nous	-
36	W11714646		Trim, Bottom Vent (black)   (Replaces: W11560859)				$ 90.33
37	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
38	W11598170		Foot, Base   (Replaces: W11245118)				$ 29.04
39	W11598169		Foot, Chassis (left)   (Replaces: W11245114)				$ 29.70
30A	W11235458		Trim, Side (black (right))				$ 79.72
33A	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 74.06
39A	W11598168		Foot, Chassis (right)   (Replaces: W11245116)				$ 29.52
3A	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 89.29
NI	W11602627		Insulation, Cavity   (Replaces: W11234758)				$ 82.51
NI	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
