01 - Cover Sheet

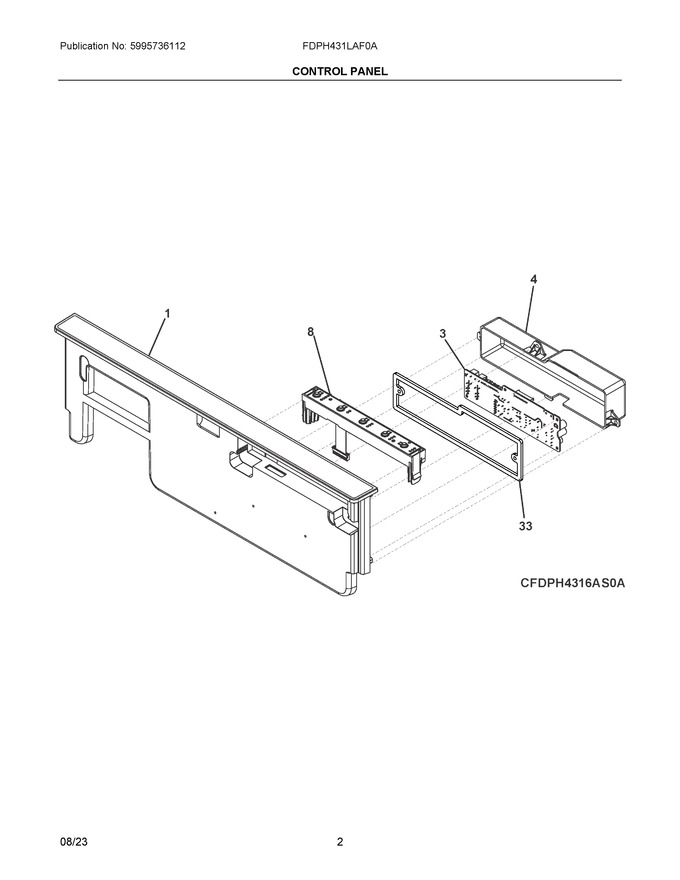

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535821 | Console Assembly, Midnight Ink, W/overlay |
|
Immediately | $ 71.86 | ||||
| 3 | 140217719099 | Pc Board (Replaces: 5304535629) |
|
Immediately | $ 90.49 | ||||
| 4 | 5304535650 | Cover |
|
Immediately | $ 12.80 | ||||
| 8 | 5304535645 | Pc Board |
|
Immediately | $ 56.68 | ||||
| 33 | 5304506894 | Gasket, Control Cover |
|
$ 16.21 | |||||
| NI | 5304535649 | Harness |
|
Immediately | $ 106.09 | ||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 10.24 |
