View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

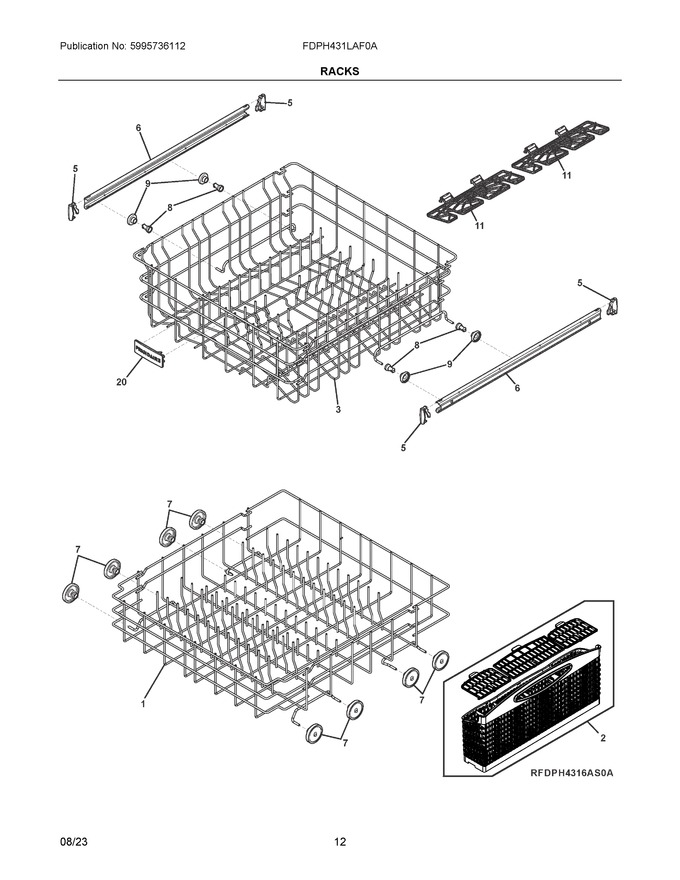

| 1 | 5304535647 | Rack Assembly |
|
$ 142.50 | |||||
| 2 | 5304535382 | Basket Assembly, Silverware, Earl Gray, W/3 Lids (Replaces: 5304532213) |
|
Immediately | $ 28.25 | ||||
| 3 | 5304535646 | Rack Assembly |
|
$ 145.55 | |||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.92 | ||||
| 6 | 5304532271 | Slide, Rack, Upper |
|
$ 56.02 | |||||
| 7 | 5304532229 | Wheel & Bushing Assy, Midnight Ink, Lower Rack |
|
Immediately | $ 14.17 | ||||
| 8 | 5304534218 | Bushing |
|
Immediately | $ 0.68 | ||||
| 9 | 5304534219 | Roller |
|
$ 0.92 | |||||
| 11 | 5304532945 | Cup Shelf, Stemware, Midnight |
|
Immediately | $ 8.24 | ||||
| 20 | 5304535550 | Nameplate |
|
$ 2.95 |
