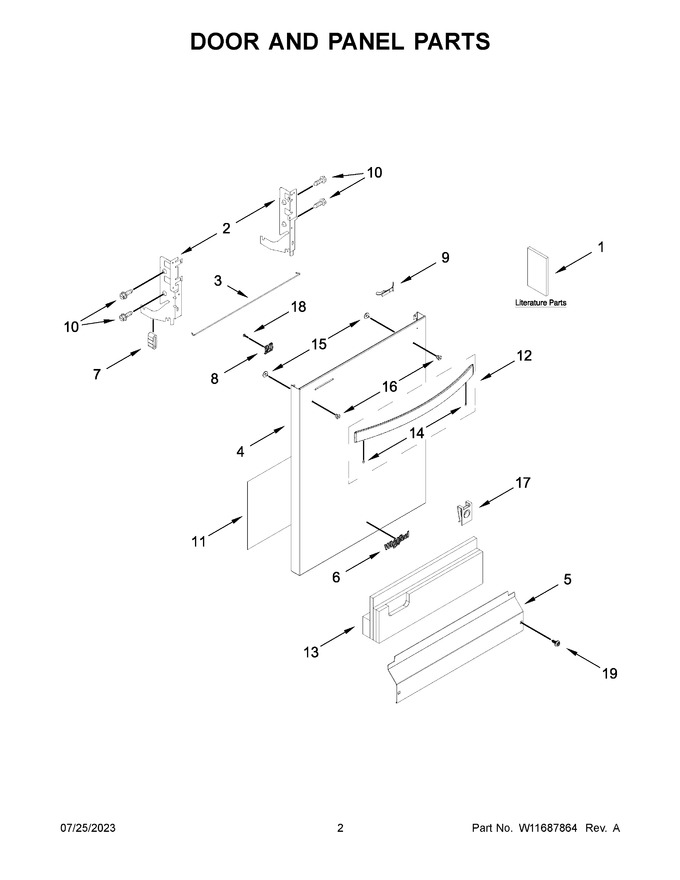

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11650520 | Energy Guide |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: W11484017) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Stiffener, Door (Replaces: W10803537) |
|
Immediately | $ 32.88 | ||||
| 4 | W11702834 | Panel, Front (includes 6, 8, 9, 15 & 16) (stainless) (Replaces: W11528197) |
|
Immediately | $ 556.21 | ||||
| 5 | W11763736 | Access Panel (includes Hardware) (black) (Replaces: W10852733) |
|
Immediately | $ 42.25 | ||||
| 6 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 7 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 8 | W10692757 | Barrel Nut, Front Panel |
|
$ 16.01 | |||||
| 9 | W11504190 | Light, Pipe |
|
- | |||||
| 10 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 11 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 12 | W11685315 | Handle (stainless) (Replaces: W11554913) |
|
Immediately | $ 102.81 | ||||
| 13 | W10831329 | Insulation, Toe Panel (Replaces: W10519755) |
|
Immediately | $ 43.30 | ||||
| 14 | W10907991 | Screw, Set (Replaces: W10693137) |
|
$ 7.55 | |||||
| 15 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 16 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 8.87 | ||||
| 17 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 8.64 | |||||
| 18 | WPW10213953 | Screw (long) (Replaces: W10711884) |
|
Immediately | $ 7.55 | ||||
| 19 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 1A | W11532445 | Owners Manual |
|
- | |||||
| 1B | W11532444 | Tech Sheet |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: W11484018) |
|
Immediately | $ 142.24 |
