Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11836636 Dishrack, Lower   (Replaces: W10525646) Special Order $ 177.40

2 WPW10082868 Wheel & Transport Assembly   (Replaces: W10082868) In-Stock Immediately $ 49.90

3 W11772521 Silverware Basket Assembly   (Replaces: W10179397) In-Stock Immediately $ 64.93

4 W10728160 Tine Row, Fold Down   (Replaces: W10056272) In-Stock Immediately $ 49.07

5 WPW10078215 Retainer, Tine Row Combo   (Replaces: W10078215) In-Stock Immediately $ 8.27

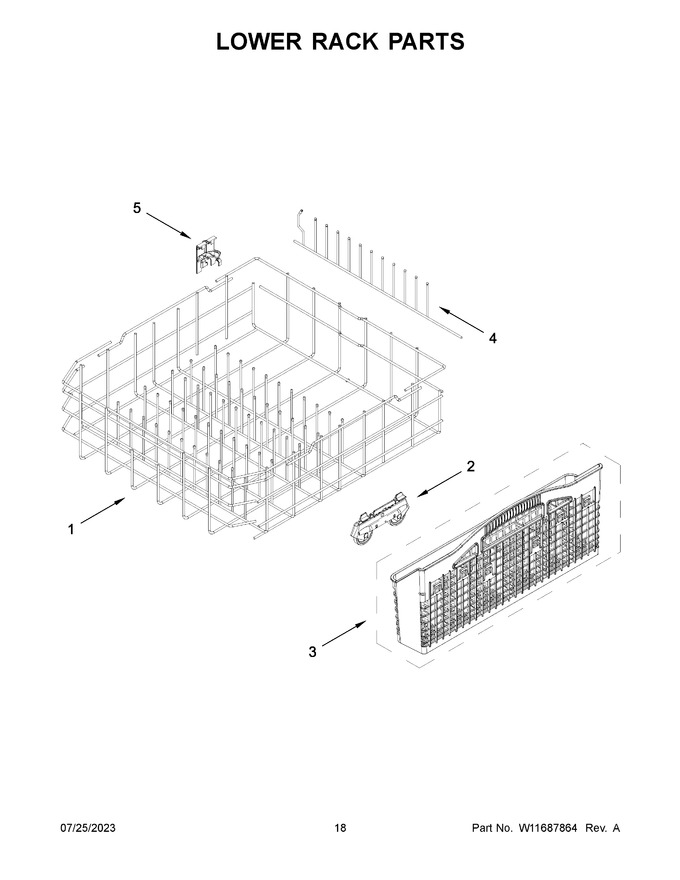

    View Diagram in Separate Window     Print Icon   Print Part List
