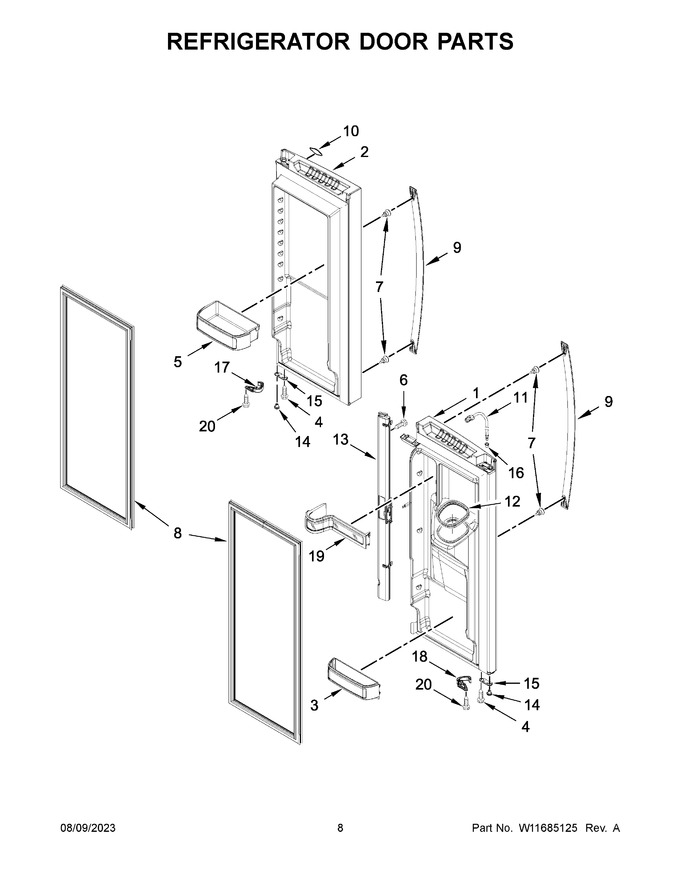

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11435353 | Door, Refrigerator Left Hand (stainless) (Replaces: W11377266) |
|
$ 1,080.69 | |||||
| 2 | W11435352 | Door, Refrigerator Right Hand (stainless) (Replaces: W11377271) |
|
$ 1,066.63 | |||||
| 3 | W11379148 | Bucket, Small (Replaces: W10355270) |
|
Immediately | $ 164.59 | ||||
| 4 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 5 | W11706640 | Bucket, Gallon (Replaces: W10355264) |
|
$ 75.11 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 8 | W10830274 | Gasket, Door (grey) |
|
Immediately | $ 205.74 | ||||
| 9 | W11045129 | Handle, Door (stainless) (Replaces: W11115757) |
|
Immediately | $ 183.31 | ||||
| 10 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 11 | W11677733 | Waterline, Door (Replaces: W11431179) |
|
$ 85.79 | |||||
| 12 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 13 | WPW10311757 | Mullion, Door (grey) (Replaces: W10311757) |
|
$ 141.14 | |||||
| 14 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 15 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 17 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 18 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 19 | W10355269 | Bucket, Upper |
|
$ 78.54 | |||||
| 20 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 |
