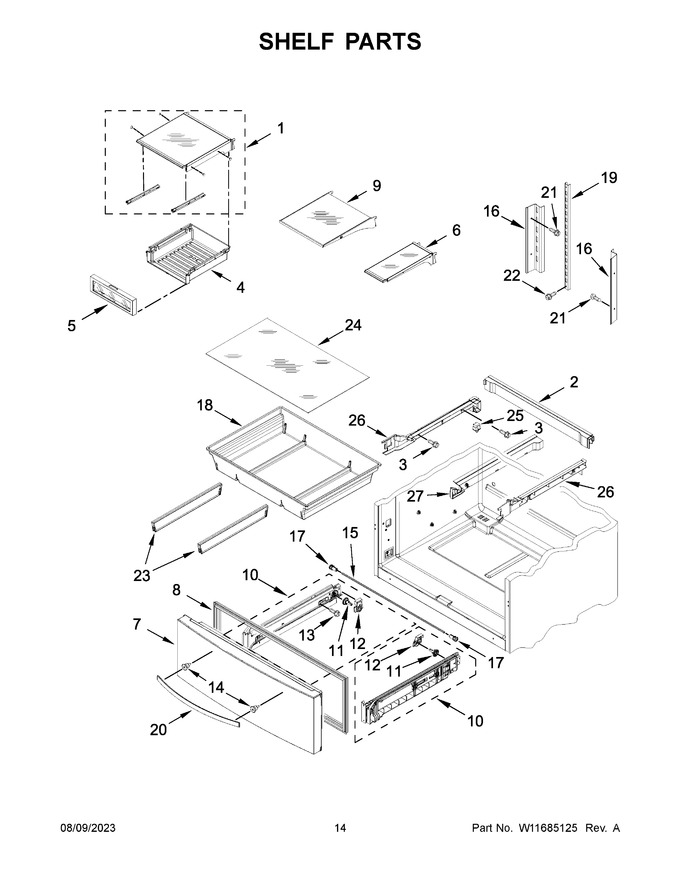

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11243759 | Assembly, Shelf And Roller (Replaces: W11124652) |
|
Immediately | $ 252.29 | ||||
| 2 | W10331298 | Rail, Rear Pantry |
|
- | |||||
| 3 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 4 | W11696630 | Pan, Deli (Replaces: W11457254) |
|
Immediately | $ 92.40 | ||||
| 5 | WPW10396909 | Front, Deli Pan (Replaces: W10396909) |
|
$ 110.47 | |||||
| 6 | W11241612 | Shelf, Mini (Replaces: W11156814) |
|
$ 245.68 | |||||
| 7 | W11435354 | Door, Pantry (stainless) (Replaces: W11377510) |
|
$ 969.53 | |||||
| 8 | WPW10443326 | Gasket, Pantry (grey) (Replaces: W10443326) |
|
$ 347.67 | |||||
| 9 | W11213107 | Shelf, Stationary (Replaces: W11117039) |
|
$ 258.34 | |||||
| 10 | W11093713 | Adapter, Pantry (left Hand) |
|
$ 141.44 | |||||
| 11 | W10277360 | Gear, Spur |
|
$ 31.85 | |||||
| 12 | W10284709 | Cover, Gear (left Hand) |
|
$ 73.89 | |||||
| 13 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 11.36 | ||||
| 14 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 15 | W10802341 | Shaft, Rack |
|
- | |||||
| 16 | W10251968 | Ladder, Side (left Hand) |
|
$ 27.38 | |||||
| 17 | WPW10277361 | Collar, Gear (Replaces: W10277361) |
|
$ 12.09 | |||||
| 18 | W11483068 | Pan, Pantry (Replaces: W11340451) |
|
$ 264.98 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 20 | W11045125 | Handle, Door (stainless) (Replaces: W11115761) |
|
Immediately | $ 190.44 | ||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 22 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 23 | W11340457 | Divider, Pantry |
|
$ 42.21 | |||||
| 24 | WPW10296571 | Glass, Pantry Shelf (Replaces: W10296571) |
|
$ 247.10 | |||||
| 25 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 26 | W10311723 | Rail, Pantry (left Hand) |
|
$ 142.03 | |||||
| 27 | W10311725 | Cover, Pantry Rail (left Hand) |
|
$ 18.24 | |||||
| 10A | W11093714 | Adapter, Pantry (right Hand) |
|
$ 138.32 | |||||
| 12A | W10294414 | Cover, Gear (right Hand) |
|
$ 83.48 | |||||
| 16A | W10251965 | Ladder, Side (right Hand) |
|
$ 31.08 | |||||
| 26A | W11715934 | Rail, Pantry (right Hand) (Replaces: W10311726) |
|
$ 45.82 |
