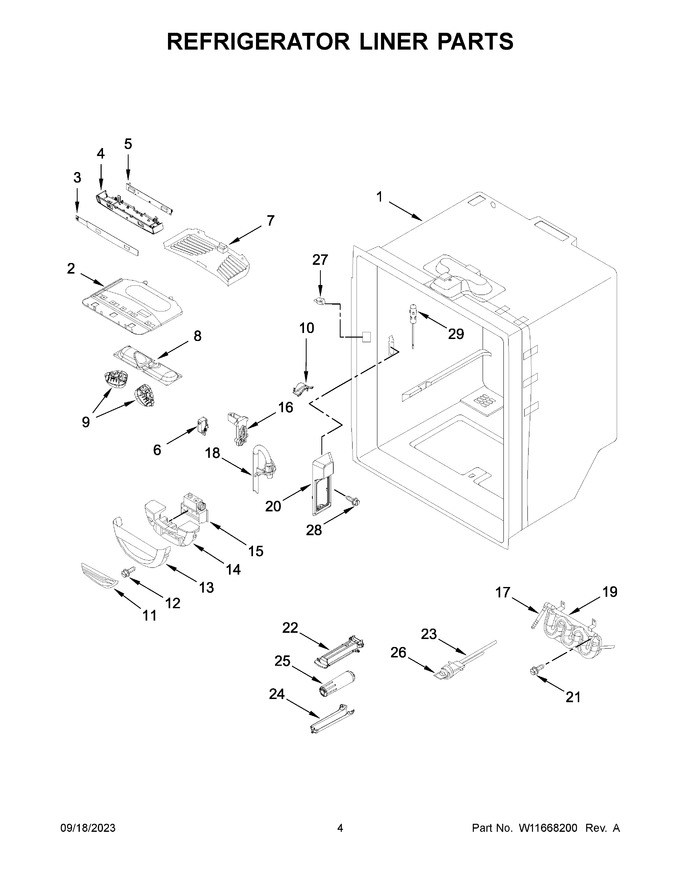

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464766 | Module, Light |
|
Immediately | $ 113.70 | ||||
| 3 | W10742010 | Overlay |
|
$ 235.11 | |||||
| 4 | W11416469 | Module, Control (Replaces: W10464767) |
|
Immediately | $ 234.84 | ||||
| 5 | W11674464 | Board, Control (Replaces: W11593758) |
|
Immediately | $ 322.96 | ||||
| 6 | WP12575502 | Switch, Limit (Replaces: 12575502) |
|
Immediately | $ 48.74 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 106.02 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 117.74 | ||||
| 9 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 42.63 | |||||
| 10 | W10116529 | Cover, Waterline |
|
$ 84.21 | |||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10594329 | Control, Damper (Replaces: W10594329) |
|
Immediately | $ 171.52 | ||||
| 16 | W11243624 | Switch, Plunger (Replaces: W10204289) |
|
Immediately | $ 68.77 | ||||
| 17 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 18 | W10117324 | Waterline, Dispenser |
|
$ 49.22 | |||||
| 19 | W11361728 | Tank, Water (Replaces: W11117106) |
|
$ 172.35 | |||||
| 20 | W11243624 | Facade, Dispenser (Replaces: W10204292) |
|
Immediately | $ 68.77 | ||||
| 21 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 22 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 105.39 | ||||
| 23 | W11844302 | Head, Water Filter (includes Bypass Cartridge) (Replaces: W11308018) |
|
$ 154.88 | |||||
| 24 | WP67006331 | Cover, Filter (Replaces: 12960301) |
|
Immediately | $ 118.37 | ||||
| 25 | EDR4RXD1B | Filter, Water (Replaces: W11256384) |
|
Immediately | $ 49.99 | ||||
| 26 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 27 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 28 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 29 | W11690896 | Thermistor (Replaces: 12791416) |
|
Immediately | $ 29.76 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11084235 | Harness, Control (refrigerator, Includes Thermistor) (Replaces: W10391289) |
|
Immediately | $ 140.89 |
