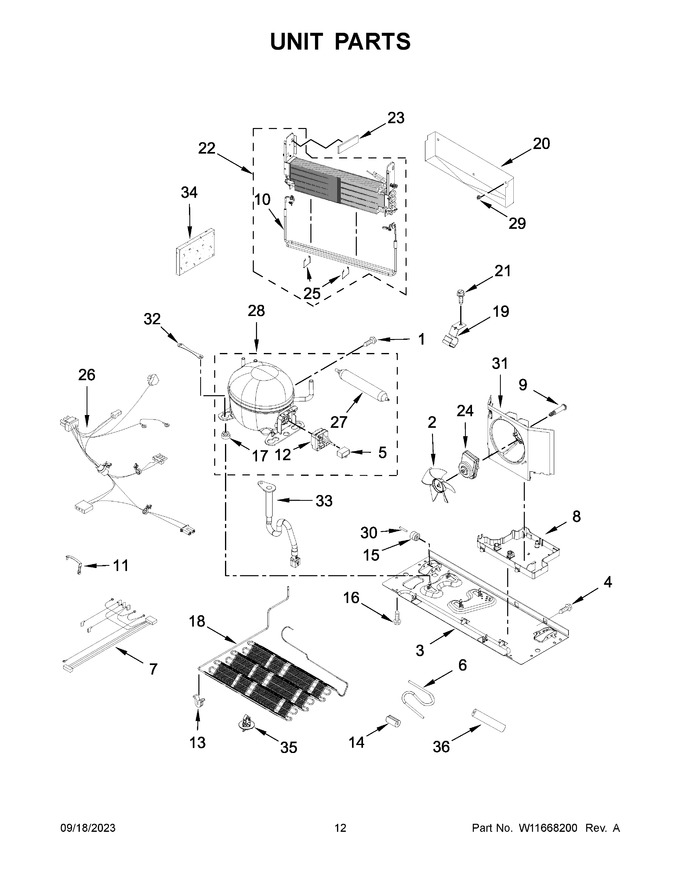

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W11727651 | Basepan (Replaces: W10480111) |
|
$ 105.29 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 5 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 6 | W11689475 | Tube, Suction (Replaces: W11623085) |
|
$ 64.94 | |||||
| 7 | W11305543 | Harness, Evaporator Heater |
|
$ 92.11 | |||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10655368) |
|
Immediately | $ 99.03 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 12.65 | |||||
| 10 | W11547652 | Heater, Defrost (Replaces: W11287565) |
|
$ 131.87 | |||||
| 11 | W11689467 | Strap, Bale (Replaces: W11629200) |
|
- | |||||
| 12 | W11524472 | Device, Start (Replaces: W11359985) |
|
Immediately | $ 30.90 | ||||
| 13 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 8.34 | |||||
| 14 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.70 | |||||
| 15 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | WPW10169124 | Grommet (Replaces: W11631702) |
|
Immediately | $ 7.19 | ||||
| 18 | W11733334 | Condenser (also Order The Following Lokring Parts) (Replaces: W11540543) |
|
Immediately | $ 190.20 | ||||
| 19 | W10281329 | Clip, Drier |
|
$ 13.08 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: W11337767) |
|
$ 54.30 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 79.72 | |||||
| 22 | W11598433 | Assembly, Evaporator And Heater (also Order The Following Lokring Parts) (Replaces: W11515437) |
|
Immediately | $ 305.91 | ||||
| 23 | W11451451 | Gasket, Foam (Replaces: W11244122) |
|
$ 12.41 | |||||
| 24 | W11613295 | Motor, Condenser Fan (Replaces: W11505534) |
|
Immediately | $ 136.84 | ||||
| 25 | W11380964 | Clip, Heater |
|
$ 17.65 | |||||
| 26 | W11654038 | Harness, Unit (includes Power Cord) |
|
$ 123.44 | |||||
| 27 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 28 | W11686820 | Compressor (also Order The Following Lokring Parts) (Replaces: W11629397) |
|
Immediately | $ 390.13 | ||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 11.53 | |||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 31 | W11556315 | Shroud, Condenser Fan (Replaces: W11463236) |
|
$ 79.66 | |||||
| 32 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| 33 | W10619951 | Extension, Drain Tube (Replaces: W10622099) |
|
Immediately | $ 42.39 | ||||
| 34 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 35 | W10815863 | Clip, Condenser |
|
Immediately | $ 38.72 | ||||
| 36 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 20.30 | ||||
| 18A | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 20.95 | ||||
| 18B | W11504432 | 6/5 Nr Ms 00 (heat Loop To Condenser) |
|
Immediately | $ 24.65 | ||||
| 22A | W11504423 | 8/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 28.16 | ||||
| 22B | W11504415 | 8.5/8 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 24.66 | ||||
| 27A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 27.54 | ||||
| 27B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 41.81 | ||||
| 28A | W11504416 | 8.5/6 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 26.20 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 25.84 | ||||
| 28C | W11506621 | 6 Nk Ms 00 (charging Tube To Compressor) |
|
Immediately | $ 20.95 | ||||
| 28D | W11506635 | Tube, Charging (1/4 In W/ Schrader Valve) |
|
Immediately | $ 35.27 | ||||
| NI | ARI3D14DF0CE53C9B0FBD6DA03DE207773B | Refrigerant Charge 51 Grams (r600a) |
|
- |
