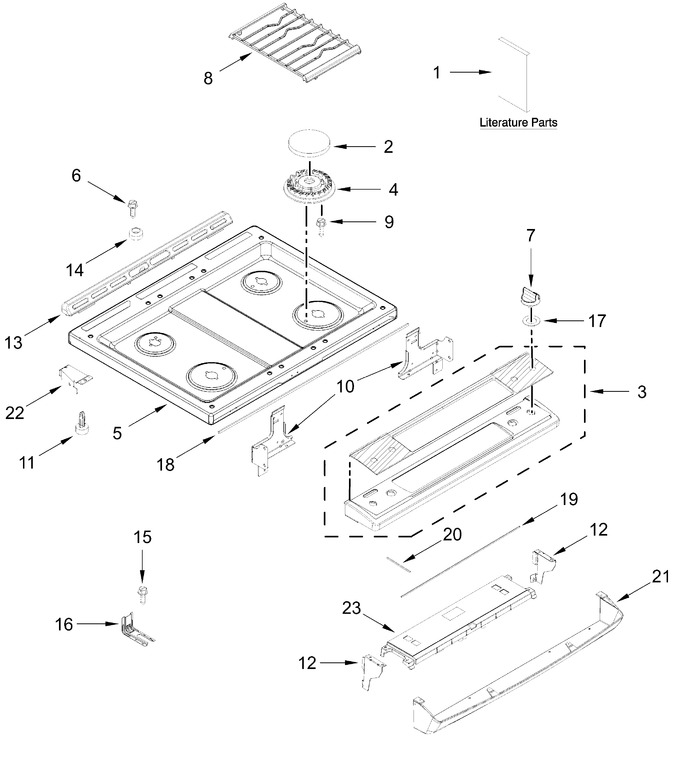

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11173535 | Burner Cap Kit (Replaces: W10825883) |
|
$ 92.01 | |||||
| 3 | W11542172 | Console (black) (Replaces: W11512203) |
|
- | |||||
| 4 | W11211506 | Spreader, Flame (Replaces: W10732322) |
|
$ 130.80 | |||||
| 5 | W10897891 | Cooktop (black) (Replaces: W11341045) |
|
$ 648.85 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11620725 | Knob (black) (Replaces: W11599577) |
|
- | |||||
| 8 | W11384202 | Grate, Kit (Replaces: W11241651) |
|
$ 392.48 | |||||
| 9 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 10 | W10814303 | Support, Cooktop (left) |
|
- | |||||
| 11 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 12 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 13 | W11256338 | Trim, Vent (black) (Replaces: W10577781) |
|
$ 205.56 | |||||
| 14 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 15 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 16 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 17 | W11131701 | Bushing (black) (Replaces: W10739036) |
|
$ 23.27 | |||||
| 18 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 19 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 21.33 | |||||
| 20 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 22.92 | |||||
| 21 | W10894124 | Console, Lower Panel (black) (Replaces: W10816943) |
|
$ 560.36 | |||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W11620561 | Electronic, Control (lcx) (Replaces: W11520693) |
|
Immediately | $ 377.84 | ||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 78.59 | ||||||
| W10842031 | Sheet, Tech |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W10814304 | Support, Cooktop (right) |
|
- | ||||||
| W10814305 | Support, Cooktop (center) |
|
- | ||||||
| W10580229 | Wire, Ground |
|
$ 38.22 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10547961 | Bracket, Console (right) |
|
$ 23.22 | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| W11699919 | Spreader, Flame (Replaces: W10732319) |
|
$ 167.33 | ||||||
| 7111P01760 | Clamp, Wire |
|
- | ||||||
| W11708326 | Spreader, Flame (Replaces: W10732320) |
|
$ 47.80 | ||||||
| W11508880 | Diagram, Wiring |
|
- | ||||||
| W11466697 | Harness, Console |
|
- | ||||||
| W11458865 | Harness, Main |
|
Immediately | $ 180.53 | |||||
| W11450462 | Harness, Bake And Broil |
|
$ 111.94 | ||||||
| W11426595 | Owners Manual |
|
- | ||||||
| W11428054 | Quick Start Guide |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 |
