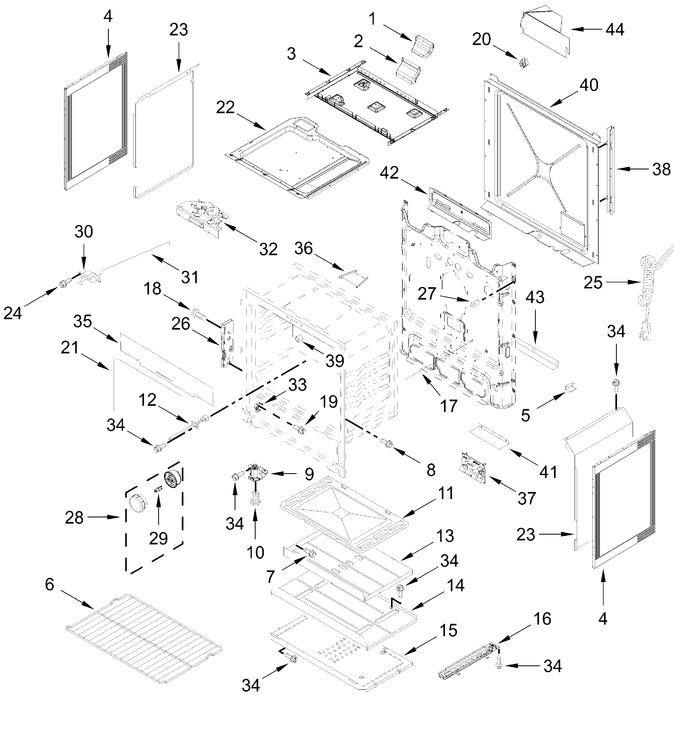

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10814257 | Adapter, Flue Assembly |
|
- | |||||
| 2 | W10614920 | Assembly, Flue |
|
$ 174.87 | |||||
| 3 | W10558276 | Burner, Box Gas |
|
$ 224.36 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| 5 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 6 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 46.84 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 8 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 9 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 10 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 231.05 | |||||
| 12 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 140.71 | ||||
| 13 | 8053967 | Baffle, Burner Oven |
|
$ 315.96 | |||||
| 14 | 8053969 | Shield, Heat |
|
$ 113.04 | |||||
| 15 | 8053968 | Shield, Lower |
|
- | |||||
| 16 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 17 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 19 | W10379120 | Screw |
|
- | |||||
| 20 | W11769891 | Clip-panel, Ratcheting (Replaces: W10866583) |
|
$ 10.63 | |||||
| 21 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 50.20 | ||||
| 22 | W10814301 | Support, Upper Chassis |
|
- | |||||
| 23 | W11379353 | Retainer, Insulation (left) |
|
- | |||||
| 24 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 25 | W11582239 | Cord, Power (Replaces: W10910642) |
|
$ 17.59 | |||||
| 26 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 27 | W11620712 | Switch, Door (Replaces: W11511828) |
|
$ 46.31 | |||||
| 28 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 40.75 | ||||
| 29 | 40A15 | Bulb, Light (Replaces: 7407P10360) |
|
Immediately | $ 1.98 | ||||
| 30 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 256.36 | |||||
| 31 | W10078370 | Rod, Push Latch |
|
$ 95.24 | |||||
| 32 | WPW10107820 | Rear Door Latch Assembly (Replaces: W10107820) |
|
$ 309.55 | |||||
| 33 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 34 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 35 | W11688573 | Chassis, Upper Insulation (Replaces: W10848443) |
|
$ 34.04 | |||||
| 36 | W10853400 | Baffle, Upper Chassis |
|
- | |||||
| 37 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 38 | W10162241 | Channel, Rear |
|
$ 37.56 | |||||
| 39 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 40 | W11379354 | Cover, Back |
|
Immediately | $ 77.79 | ||||
| 41 | W10655451 | Guard, Splash (Replaces: W11206138) |
|
$ 76.02 | |||||
| 42 | W10818356 | Wire, Cover |
|
- | |||||
| 43 | W10435470 | Brace, Main Back |
|
$ 81.74 | |||||
| 44 | W10818358 | Shield, Wire |
|
- | |||||
| W11379943 | Retainer, Insulation (right) |
|
- | ||||||
| W11688400 | Insulation, Back (Replaces: W10815344) |
|
- | ||||||
| W11684776 | Insulation, Wrap (Replaces: W10818362) |
|
- | ||||||
| W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| 3196896 | Clip, Wire |
|
- |
