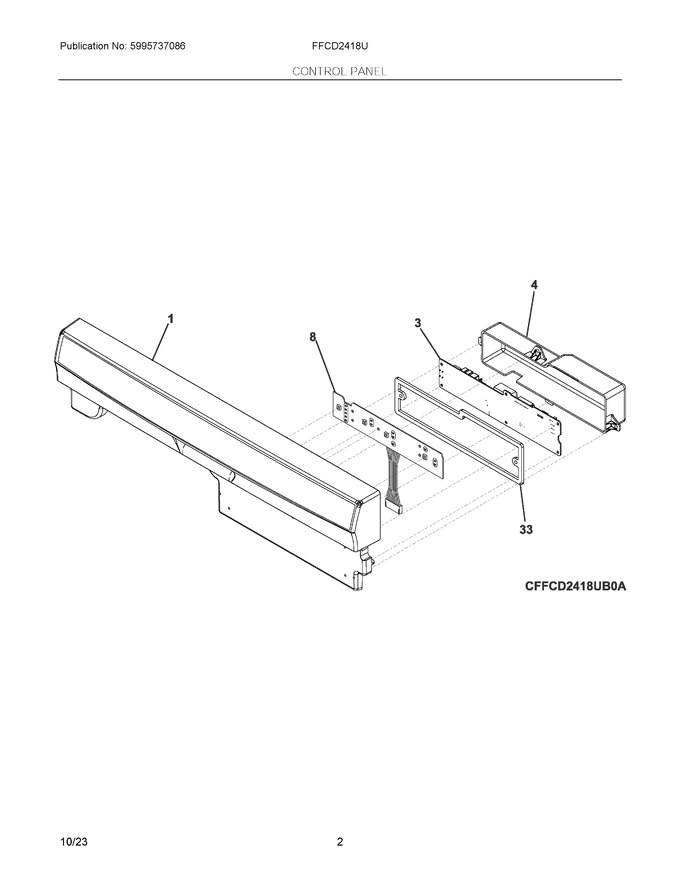

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304517658 | Control Panel, Assembly, White, W/overlay-gskt |
|
$ 108.44 | |||||
| 3 | 5304531745 | Pc Board, Control, K42g |
|
Immediately | $ 110.00 | ||||
| 4 | 5304506895 | Cover, Control |
|
$ 30.61 | |||||
| 8 | 5304517208 | Control Assembly, User Interface |
|
Immediately | $ 103.16 | ||||
| 33 | 5304506894 | Gasket, Control Cover |
|
$ 16.21 | |||||
| NI | 5304526750 | Harness Assembly, Main, W/latch, And High Limit, Thermostat |
|
$ 155.67 | |||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 10.24 |
