01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

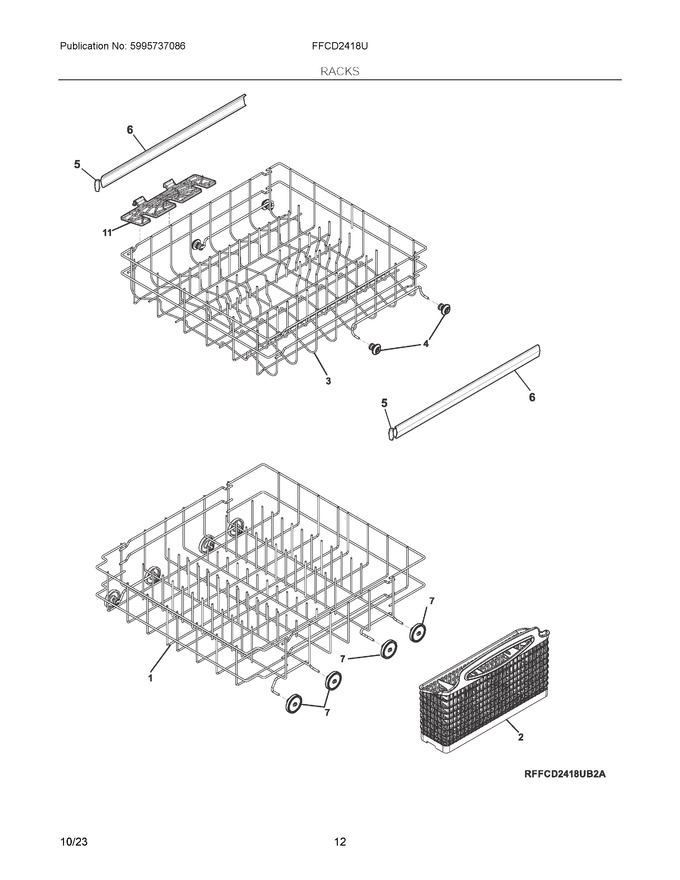

| 1 | 5304535379 | Rack Assembly, Lower, Gray, W/rollers (Replaces: 5304535335) |
|
Immediately | $ 138.64 | ||||
| 2 | 5304509753 | Basket, Silverware |
|
Immediately | $ 40.97 | ||||
| 3 | 5304535380 | Rack Assembly, Upper, Gray, W/rollers (Replaces: 5304535334) |
|
Immediately | $ 167.45 | ||||
| 4 | 5304534218 | Wheel & Bushing Assy, Wheels, Upper Rack |
|
Immediately | $ 0.68 | ||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.92 | ||||
| 6 | 5304532271 | Slide, Rack, Upper |
|
$ 56.02 | |||||
| 7 | 5304532229 | Wheel & Bushing Assy, Midnight Ink, Lower Rack |
|
Immediately | $ 14.17 | ||||
| 11 | 5304532945 | Cup Shelf, Stemware (Replaces: 5304506507) |
|
Immediately | $ 8.24 | ||||
| NI | 5304535550 | Nameplate, Rack Spacer, Grey (Replaces: 5304506527) |
|
$ 2.95 |
