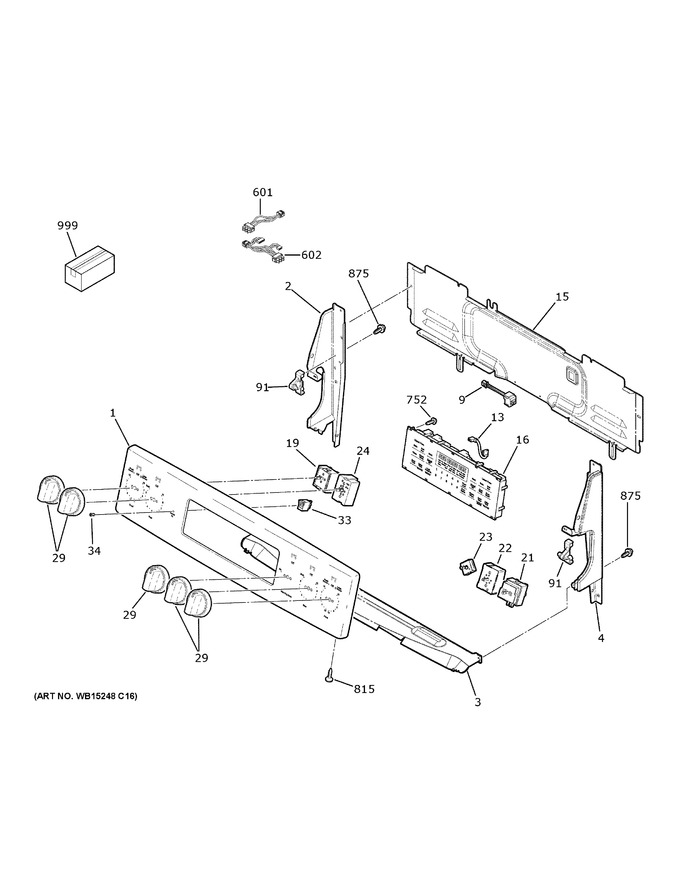

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB07X39528		Trim Control (fs)		Appelez-nous	-
2	WB07X29534		End Plate Lh Dg		Appelez-nous	-
3	WB34X28565		Backguard Shield Heat		Appelez-nous	-
4	WB07X29535		End Plate Rh Dg		Appelez-nous	-
5	WB34X37722		Control Panel Bracket		Appelez-nous	-
9	WB27X30706		Rj45 Connector And Harness		Appelez-nous	-
10	WB02X20265		Housing Transceiver		Appelez-nous	-
11	WB27X39766		Kit Wifi Module Service		Appelez-nous	-
13	WB18X30704		Jumper		Appelez-nous	-
15	WB34X25565		Cover Control		Appelez-nous	-
16	WB27X40189		Oven Control And Faceplate		Appelez-nous	-
19	WB24X25013		Switch Infinite Control		Appelez-nous	-
21	WB24X25152		Switch Infinite Control		Appelez-nous	-
22	WB24T10022		Inf Switch Control 1250w				$ 48.75
23	WB24X40051		Switch Rotary		Appelez-nous	-
24	WG02F04022		Control Surf Elem   (Replaces: WB24T10146)			Immediately	$ 53.80
29	WB03X24965		Knob Infinite (ch)		Appelez-nous	-
33	WB25X20005		Light Indicator Pilot		Appelez-nous	-
34	WB25X24023		Lens		Appelez-nous	-
91	WB10T10116		Pin Rangetop Hinge		Appelez-nous	-
601	WB18X40209		Harness Wire Infinite		Appelez-nous	-
602	WB18X40210		Harness Wire Ui Com		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
815	WB01X26365		Scr 8-18 Ab #60rh 1/2 Ni		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
999	31-10816		Pm Instructions Install		Appelez-nous	-
999	WB64X38025		Cleaner Glass		Appelez-nous	-
999	31-2000860		Pm Mini Manual And Wiring		Appelez-nous	-
999	31-2000910		Pm Install Instructions		Appelez-nous	-
999	31-10661		Instruction Install		Appelez-nous	-
999	31-10781		Pm Install Instructions		Appelez-nous	-
999	49-2000996		Pm Owners Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
