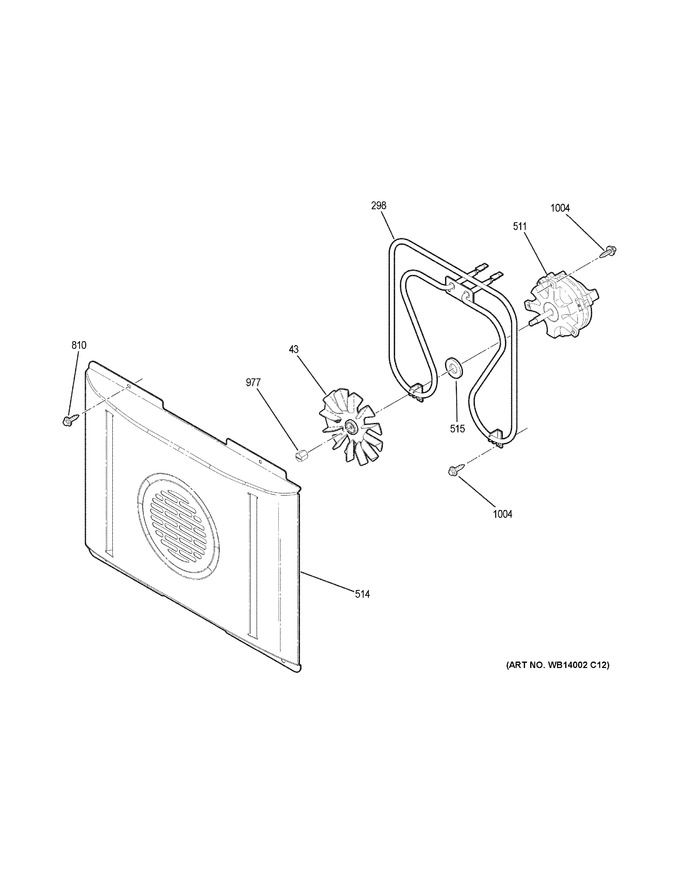

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 43 | WG02F00731 | Hub Blade Asm (Replaces: WB02T10289) |
|
Immediately | $ 32.88 | ||||
| 298 | WB44X31764 | Convection Heating Element |
|
- | |||||
| 298 | WB44X45496 | Convection Heating Element |
|
- | |||||
| 511 | WB26X24910 | Motor Psc Conv |
|
- | |||||
| 514 | WB34X31766 | Black Convection Fan Cover |
|
- | |||||
| 515 | WB02T10514 | Gasket Conv Fan |
|
- | |||||
| 810 | WB01M10002 | Screw |
|
- | |||||
| 977 | WS01A01105 | Nut (Replaces: WB02T10017) |
|
Immediately | $ 8.55 | ||||
| 1004 | WH2X941 | Scr 8-15 A Hxw 7/8 S |
|
- |
