Cabinet & Top Panel
Controls & Dispenser
Front Panel & Door
Heat Pump & Filter Assembly
Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

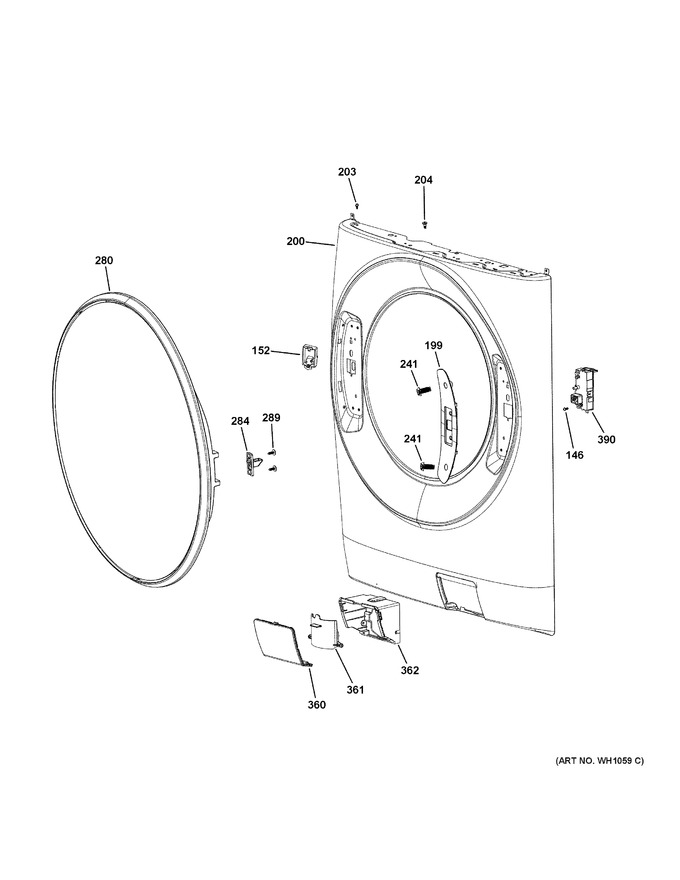

| 146 | WH02X26240 | Screw |
|
- | |||||
| 152 | WH01X30359 | Door Latch Harness Holder Diamond Gray |
|
- | |||||
| 199 | WH01X30344 | Latch Cover Diamond Gray |
|
- | |||||
| 200 | WH13X36262 | Front Panelfscombidarkslate |
|
- | |||||
| 203 | WH02X30339 | Ground Screw |
|
- | |||||
| 204 | WH02X26236 | Screw M4*10 |
|
- | |||||
| 241 | WH02X30337 | Door Hinge Screw |
|
- | |||||
| 280 | WH10X35678 | Assembly Door |
|
- | |||||
| 284 | WH01X29659 | Door Strike |
|
- | |||||
| 289 | WH02X29618 | Screw Door Strike |
|
- | |||||
| 312 | WH02X30340 | Screw 15.4*16 |
|
- | |||||
| 360 | WH11X34299 | Drain Pump Access Door Dark Slate |
|
- | |||||
| 361 | WH11X29650 | Drain Pump Funnel |
|
- | |||||
| 362 | WH11X29644 | Drain Pump Housing |
|
- | |||||
| 390 | WH01X29528 | Door Lock |
|
- | |||||
| 655 | WH23X38617 | Pump Filter With Seal |
|
- | |||||
| 656 | WH11X29539 | Drain Pumps & Filter |
|
- |
