Cabinet & Top Panel

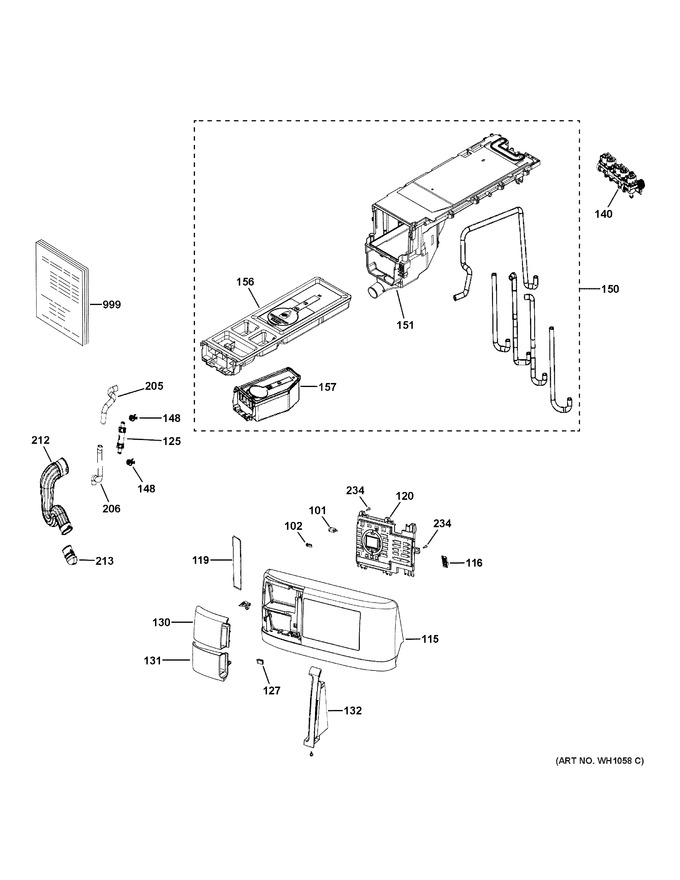

Controls & Dispenser
Front Panel & Door
Heat Pump & Filter Assembly
Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | WH02X29626 | Ground Harness Clamp |
|
- | |||||
| 13 | WH02X36518 | Wire Tie Christmas Tree Head |
|
- | |||||
| 101 | WH01X26182 | Out Of Balance Micro Switch |
|
$ 7.82 | |||||
| 102 | WH01X35695 | Micro Switch (lint Filter) Gasket |
|
- | |||||
| 103 | WH01X35695 | Micro Switch (lint Filter) Gasket |
|
- | |||||
| 113 | WE02X26338 | Screw St4*16 |
|
- | |||||
| 115 | WH13X36271 | Control Panel Fs Combi Dark Slate |
|
- | |||||
| 116 | WH22X36263 | Wifi Board |
|
- | |||||
| 119 | WH01X36261 | User Interface Heat Shield |
|
- | |||||
| 119 | WE01X36265 | Lint Filter Handle Seal Strip |
|
- | |||||
| 120 | WH22X35724 | Ui Asm |
|
- | |||||
| 125 | WE04X27737 | One Way Valve |
|
- | |||||
| 127 | WH01X29669 | Rj45 Cover |
|
- | |||||
| 130 | WH01X35703 | Detergent Drawer Handle |
|
- | |||||
| 131 | WH01X35727 | Softener Drawer Handle |
|
- | |||||
| 131 | WH02X29619 | External Drain Hose Guide |
|
- | |||||
| 132 | WH02X29616 | External Drain Hose Internal Support |
|
- | |||||
| 132 | WH01X35710 | Filter Handle |
|
- | |||||
| 135 | WH01X35727 | Softener Drawer Handle |
|
- | |||||
| 136 | WH01X35710 | Lint Filter Handle |
|
- | |||||
| 140 | WH23X35712 | Water Valve Assembly |
|
- | |||||
| 148 | WH01X26244 | Tube Clamp |
|
- | |||||
| 150 | WH41X36779 | Smart Dispenser Assembly |
|
- | |||||
| 150 | WH42X35705 | Smart Dispenser Assembly |
|
- | |||||
| 151 | WH41X36319 | Dispenser Tank Assembly |
|
- | |||||
| 156 | WH41X36379 | Detergent Smart Dispenser |
|
- | |||||
| 157 | WH41X36320 | Softener Dispenser Drawer |
|
- | |||||
| 158 | WH01X26320 | Internal Drain Hose Clamp |
|
- | |||||
| 205 | WH41X36777 | Glass Cleaning Hose Lower |
|
- | |||||
| 206 | WH41X36778 | Glass Cleaning Hose Upper |
|
- | |||||
| 212 | WH41X35729 | Dispenser Hose (disp To Gasket) |
|
- | |||||
| 213 | WH41X29621 | Dispenser Fill Hose Nozzle |
|
- | |||||
| 231 | WH02X27685 | Screw St4*10-b |
|
- | |||||
| 234 | WH01X27834 | Tapping Screw |
|
- | |||||
| 289 | WH02X29618 | Screw 3.9*15 |
|
- | |||||
| 617 | WH02X27118 | Screw M4*5 |
|
- | |||||
| 658 | WH01X27149 | Tub Fill Hose To Tub Clamp |
|
- | |||||
| 999 | 31-3000358 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 49-3000353 | Pm Quick Owners Manual |
|
- |
