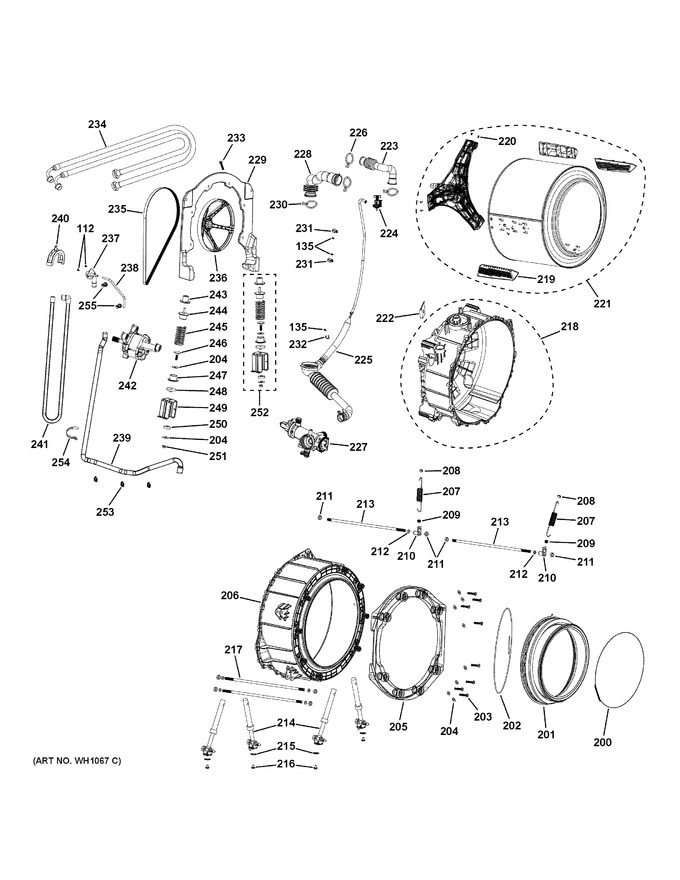

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WH02X26240 | Screw St4.2*12 |
|
- | |||||
| 135 | WH02X26267 | Screw St3.5*12 |
|
- | |||||
| 135 | WH02X33717 | Screw St4*9 |
|
- | |||||
| 200 | WH02X33436 | Boot Gasket Clamp |
|
- | |||||
| 201 | WH05X33432 | Boot Gasket |
|
- | |||||
| 202 | WH02X33713 | Boot Gasket Rear Clamp |
|
- | |||||
| 203 | WH02X33698 | Front Counterweight Screw St8*40 |
|
- | |||||
| 204 | WH02X33451 | Compression Spring Washer M8 |
|
- | |||||
| 205 | WH01X33344 | Front Counterweight |
|
- | |||||
| 206 | WH21X33377 | Tub Front |
|
- | |||||
| 207 | WH02X33435 | Suspension Spring |
|
- | |||||
| 208 | WH02X33386 | Suspension Spring Upper Sheath |
|
- | |||||
| 209 | WH02X33461 | Suspension Spring Lower Sheath |
|
- | |||||
| 210 | WH13X33341 | Support Rod Bracket |
|
- | |||||
| 211 | WH02X33419 | Nut M12 |
|
- | |||||
| 212 | WH02X33417 | Washer M12 |
|
- | |||||
| 213 | WH02X33711 | Support Rod |
|
- | |||||
| 214 | WH03X33442 | Suspension Damper |
|
- | |||||
| 215 | WH01X27231 | Damper Rubber Washer |
|
- | |||||
| 216 | WH01X27132 | Cw Bolt Tension Washer |
|
- | |||||
| 217 | WH01X33340 | Support Rod |
|
- | |||||
| 218 | WH21X33434 | Rear Tub |
|
- | |||||
| 219 | WH13X33396 | Basket Baffle |
|
- | |||||
| 220 | WH02X26303 | Screw |
|
- | |||||
| 221 | WH21X33722 | Basket & Trunion Assembly |
|
- | |||||
| 222 | WH02X35540 | Rear Counterweight Fastening Plate |
|
- | |||||
| 223 | WH41X33425 | Sump Hose |
|
- | |||||
| 224 | WH12X27815 | Pressure Switch |
|
- | |||||
| 225 | WH41X33440 | Pressure Hose |
|
- | |||||
| 226 | WH02X33431 | Dispenser Fill Hose Clamp |
|
- | |||||
| 227 | WH11X33445 | Drain Pump & Filter |
|
- | |||||
| 228 | WH41X33422 | Dispenser Fill Hose |
|
- | |||||
| 229 | WH01X33337 | Rear Counterweight |
|
- | |||||
| 230 | WH01X26300 | Tub Fill Hose To Tub Clamp |
|
- | |||||
| 231 | WH02X33720 | Wire Harness Clamp |
|
- | |||||
| 232 | WH02X33726 | Sump Hose Clamp |
|
- | |||||
| 233 | WH02X26905 | Screw M8*35 |
|
- | |||||
| 234 | WH41X28682 | Inlet Hoses |
|
- | |||||
| 235 | WH03X33375 | Drive Belt |
|
- | |||||
| 236 | WH03X33342 | Pulley |
|
- | |||||
| 237 | WH02X33389 | Drain Hose Joint |
|
- | |||||
| 238 | WH41X33423 | Anti-siphon Hose |
|
- | |||||
| 239 | WH41X33703 | Drain Hose Inner |
|
- | |||||
| 240 | WH02X33454 | Drain Hose Support |
|
- | |||||
| 241 | WH41X26325 | External Drain Hose |
|
$ 34.29 | |||||
| 242 | WH03X33450 | Motor |
|
- | |||||
| 243 | WH13X33421 | Compression Spring Upper Mount |
|
- | |||||
| 244 | WH01X33354 | Compression Spring Seat (upper) |
|
- | |||||
| 245 | WH02X33441 | Compression Spring |
|
- | |||||
| 246 | WH02X33338 | Compression Spring Lower Bolt |
|
- | |||||
| 247 | WH01X33350 | Compression Spring Seat (lower) |
|
- | |||||
| 248 | WH05X33424 | Compression Spring Upper Gasket |
|
- | |||||
| 249 | WH13X33346 | Compression Spring Support Bracket |
|
- | |||||
| 250 | WH05X33420 | Compression Spring Lower Gasket |
|
- | |||||
| 251 | WH02X27225 | Nut |
|
- | |||||
| 252 | WH03X33447 | Damper Assembly |
|
- | |||||
| 253 | WH01X26326 | External Drain Hose Base Clip |
|
- | |||||
| 254 | WH01X26257 | Large Wire Tie |
|
- | |||||
| 255 | WH01X26322 | Lower Pressure Hose Clamp |
|
- |
