Cabinet & Top Panel


Controls & Dispenser


Front Panel & Door


Optional Accessories


Tub & Motor

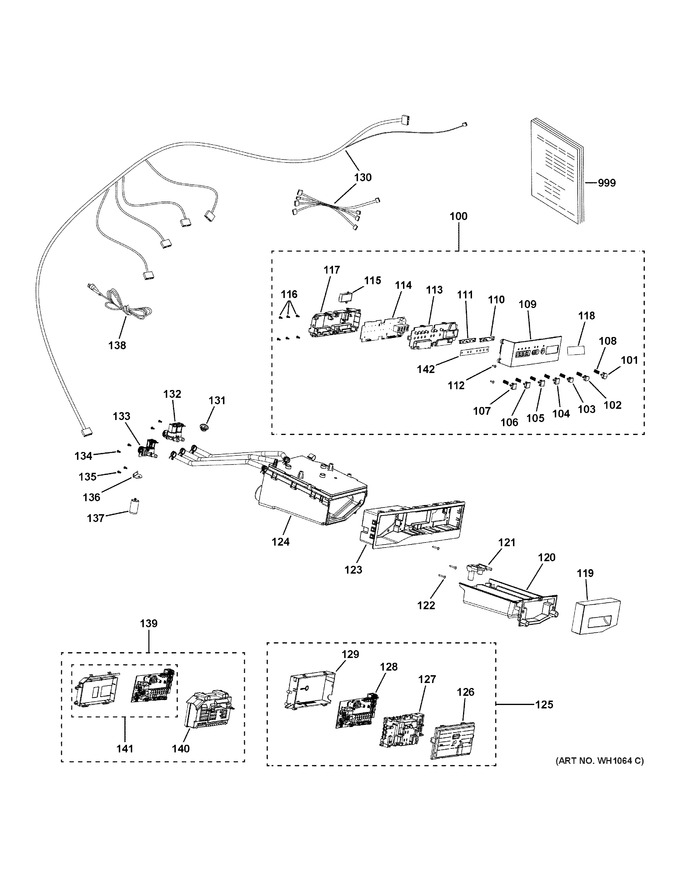

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	WH22X33819		User Interface & Housing Assembly		Appelez-nous	-
101	WH01X33725		Start Button		Appelez-nous	-
102	WH01X33723		Extra Rinse Button		Appelez-nous	-
103	WH01X33708		Heavy Soil Button		Appelez-nous	-
104	WH01X33701		Delicate Cycle Button		Appelez-nous	-
105	WH01X33704		Hot Water Button		Appelez-nous	-
106	WH01X33705		Warm Water Button		Appelez-nous	-
107	WH01X33712		Cold Water Button		Appelez-nous	-
108	WH02X33348		Button Spring		Appelez-nous	-
109	WH13X33714		Control Panel		Appelez-nous	-
110	WH01X33716		Light Guide		Appelez-nous	-
111	WH01X33719		Light Guide		Appelez-nous	-
112	WH02X26240		Screw St4.2*12		Appelez-nous	-
113	WH01X33391		User Interface Board Cover		Appelez-nous	-
114	WH22X33457		User Interface Board		Appelez-nous	-
115	WH01X33387		User Interface Board Housing		Appelez-nous	-
116	WH02X26247		Screw				$ 1.71
117	WH22X29551		Wifi Board		Appelez-nous	-
118	WH01X33365		Screen Cover		Appelez-nous	-
119	WH02X33715		Dispenser Tray Handle		Appelez-nous	-
120	WH42X33370		Dispenser Drawer		Appelez-nous	-
121	WH42X33360		Siphon Cap		Appelez-nous	-
122	WH02X33429		Fastening Screw St3.5*19		Appelez-nous	-
123	WH13X33697		Control Bracket		Appelez-nous	-
124	WH13X33437		Dispenser Housing		Appelez-nous	-
125	WH22X33827		Main Control Board & Housing Assembly		Appelez-nous	-
126	WH01X33724		Main Control Board Cover		Appelez-nous	-
127	WH01X33702		Main Control Board Bracket		Appelez-nous	-
128	WH22X33721		Main Control Board		Appelez-nous	-
129	WH01X33710		Main Control Board Housing		Appelez-nous	-
130	WH08X33427		Main Harness		Appelez-nous	-
131	WH01X26275		Doorplug		Appelez-nous	-
132	WH23X29541		Water Valve		Appelez-nous	-
133	WH23X29527		Hot Water Valve		Appelez-nous	-
134	WH02X33458		Fastening Screw M4*5		Appelez-nous	-
135	WH02X33717		Screw St4*9		Appelez-nous	-
135	WH02X26267		Screw St3.5*12		Appelez-nous	-
136	WH02X27224		Capacitor Bracket		Appelez-nous	-
137	WH04X33426		Line Filter		Appelez-nous	-
138	WH08X31357		Power Cord		Appelez-nous	-
139	WH22X33818		Inverter Board & Housing Assembly		Appelez-nous	-
140	WH18X26286		Inverter Board Cover		Appelez-nous	-
141	WH22X33455		Inverter Board		Appelez-nous	-
142	WH01X33418		Silicone Key Mat		Appelez-nous	-
999	31-3000278		Pm Mini Manual And Wiring		Appelez-nous	-
999	49-3000277		Pm Owners And Install		Appelez-nous	-
