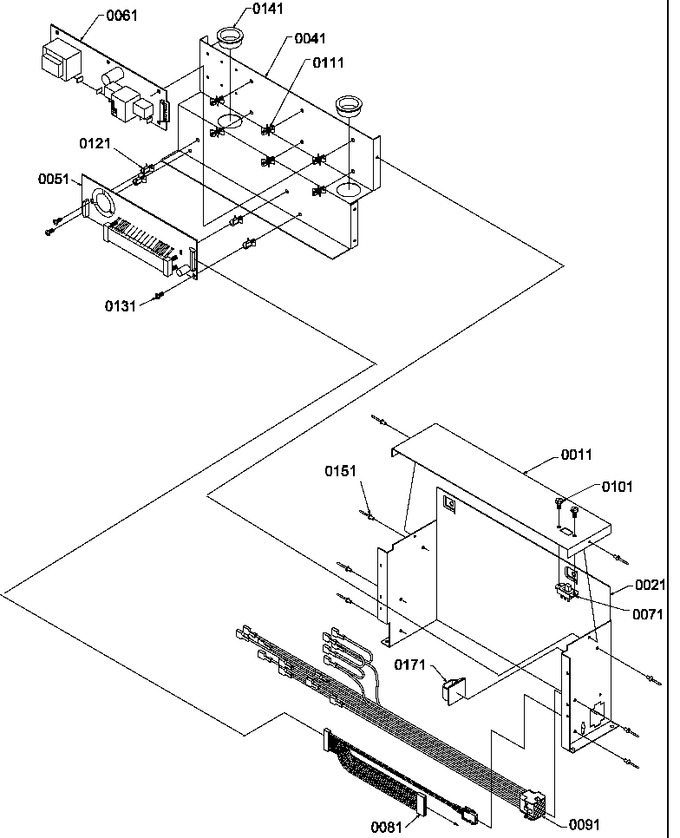

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12090801 | Top, Cont. Box |
|
- | |||||
| 21 | 12091101 | Box, Cont |
|
- | |||||
| 41 | 12090901 | Bracket, P.c. |
|
- | |||||
| 51 | 12067101 | Board,(see Comments For Sub) |
|
- | |||||
| 61 | 12106801 | Board, H.v. Pc |
|
- | |||||
| 71 | 10544502 | Switch, Slide |
|
- | |||||
| 81 | 12065101 | Harness-low Volt |
|
- | |||||
| 91 | 12065201 | Harness, H.v. |
|
- | |||||
| 101 | M0223803 | Screw |
|
- | |||||
| 111 | M0585504 | Support |
|
- | |||||
| 121 | M0585506 | Support |
|
- | |||||
| 131 | M0217204 | Screw |
|
- | |||||
| 141 | A4554817 | Bushing-snap |
|
- | |||||
| 151 | A4539601 | Pop Rivet |
|
- | |||||
| 171 | M0104105 | Clip, Cord |
|
- |
