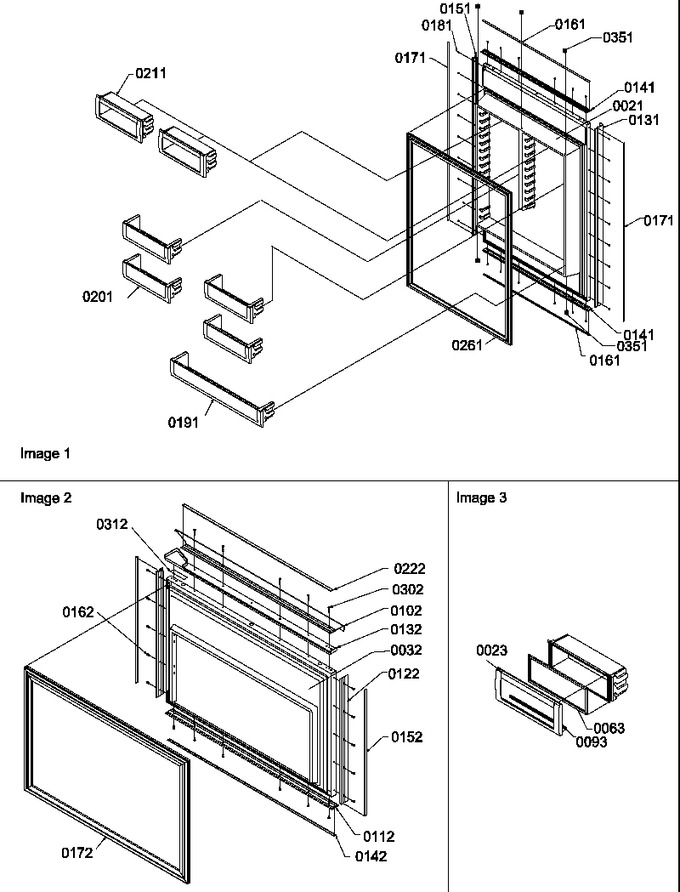

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	12282101		Assy Ref Door 84 Inch		Appelez-nous	-
23	12062601		Door, Dairy Module		Appelez-nous	-
32	12282201		Assy, Frz Dr (84`` Bm)		Appelez-nous	-
63	12177201		Gasket, Dairy Door		Appelez-nous	-
93	12116401		Clip-dairy Dr Spring		Appelez-nous	-
102	12138602		Extrsn- L Door Handle		Appelez-nous	-
112	12064201		Extrsn-door Frame,trim		Appelez-nous	-
122	12064202		Extrsn-door Frame,trim		Appelez-nous	-
131	12064101		Extrsn-door Handle		Appelez-nous	-
132	12116602		Spacer-l Fz Handle		Appelez-nous	-
141	12064201		Extrsn-door Frame,trim		Appelez-nous	-
142	12063701		Insert, Door Frame		Appelez-nous	-
151	12064203		Extrsn-door Frame,trim		Appelez-nous	-
152	12063702		Insert, Door Frame		Appelez-nous	-
161	12063701		Insert, Door Frame		Appelez-nous	-
162	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 8.16
171	12063703		Insert, Door Frame		Appelez-nous	-
172	10933002		Gasket-door		Appelez-nous	-
181	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 8.16
191	12039701		Ass`y, Door Shelf		Appelez-nous	-
201	12055401		Assy, Door Shelf		Appelez-nous	-
211	12097401		Assy, Dairy Module		Appelez-nous	-
222	12063705		Insert, Door Frame		Appelez-nous	-
261	10933001		Gasket-door		Appelez-nous	-
302	M0215709		Screw				$ 12.74
351	12128001		Plug-inner Door		Appelez-nous	-
NI	M0275193		Tape, Foam		Appelez-nous	-
